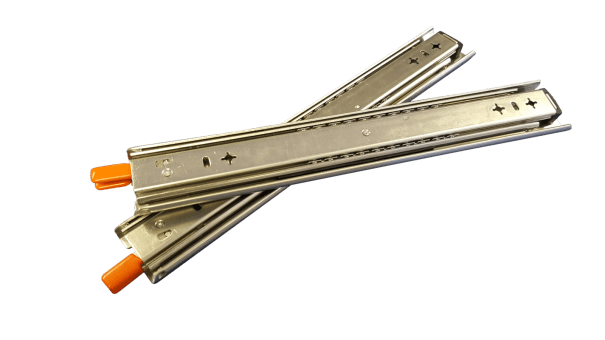

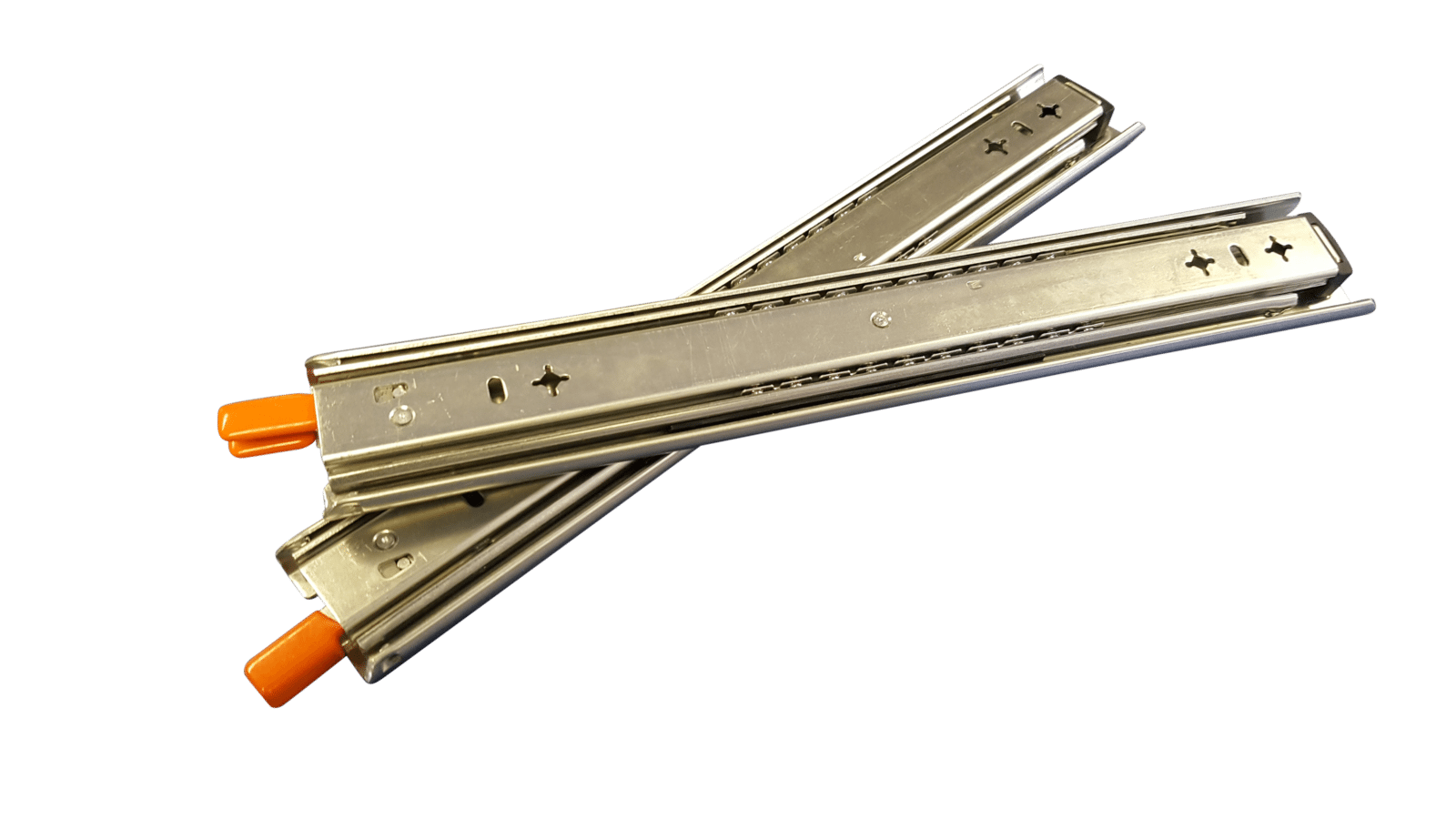

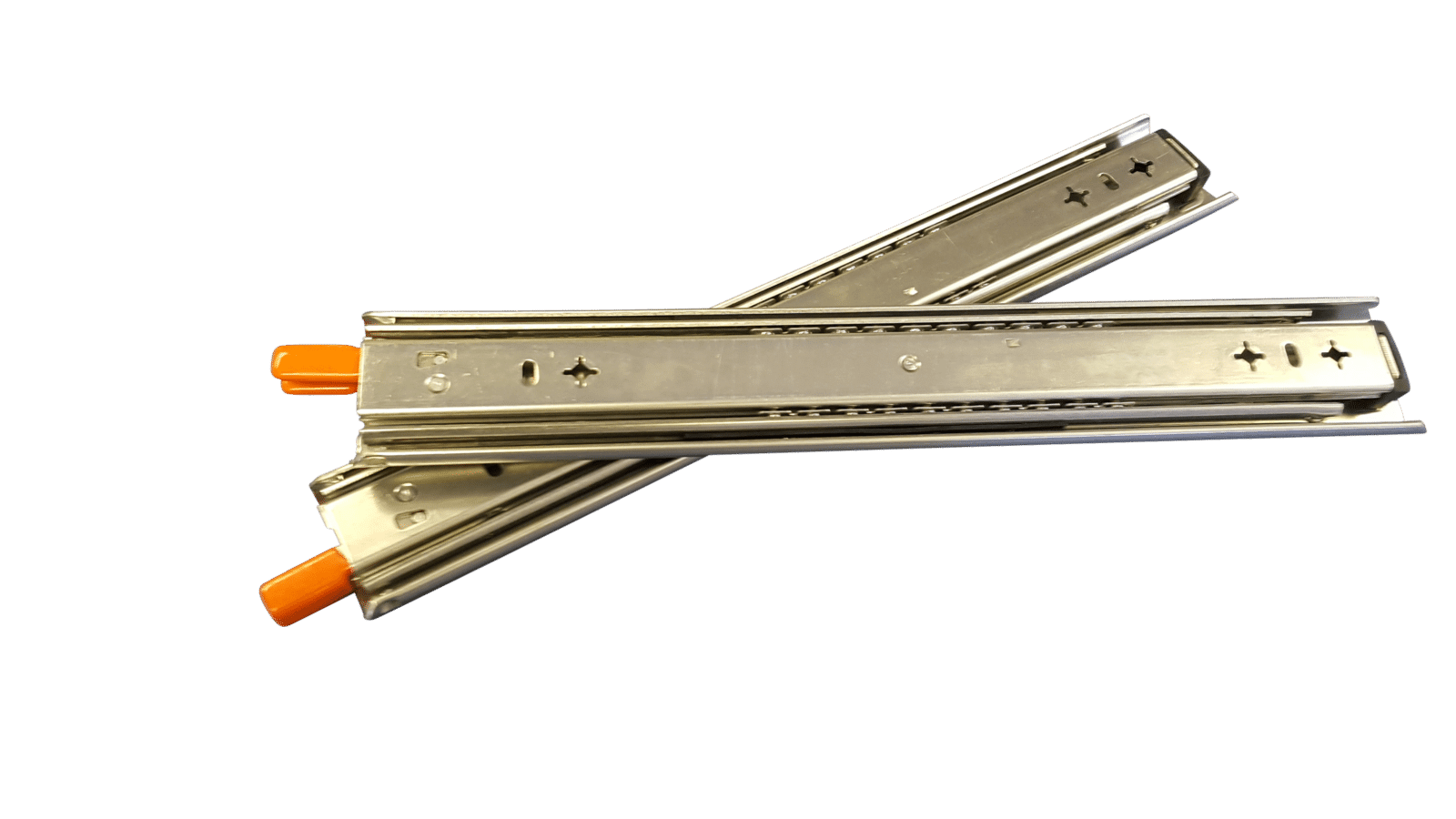

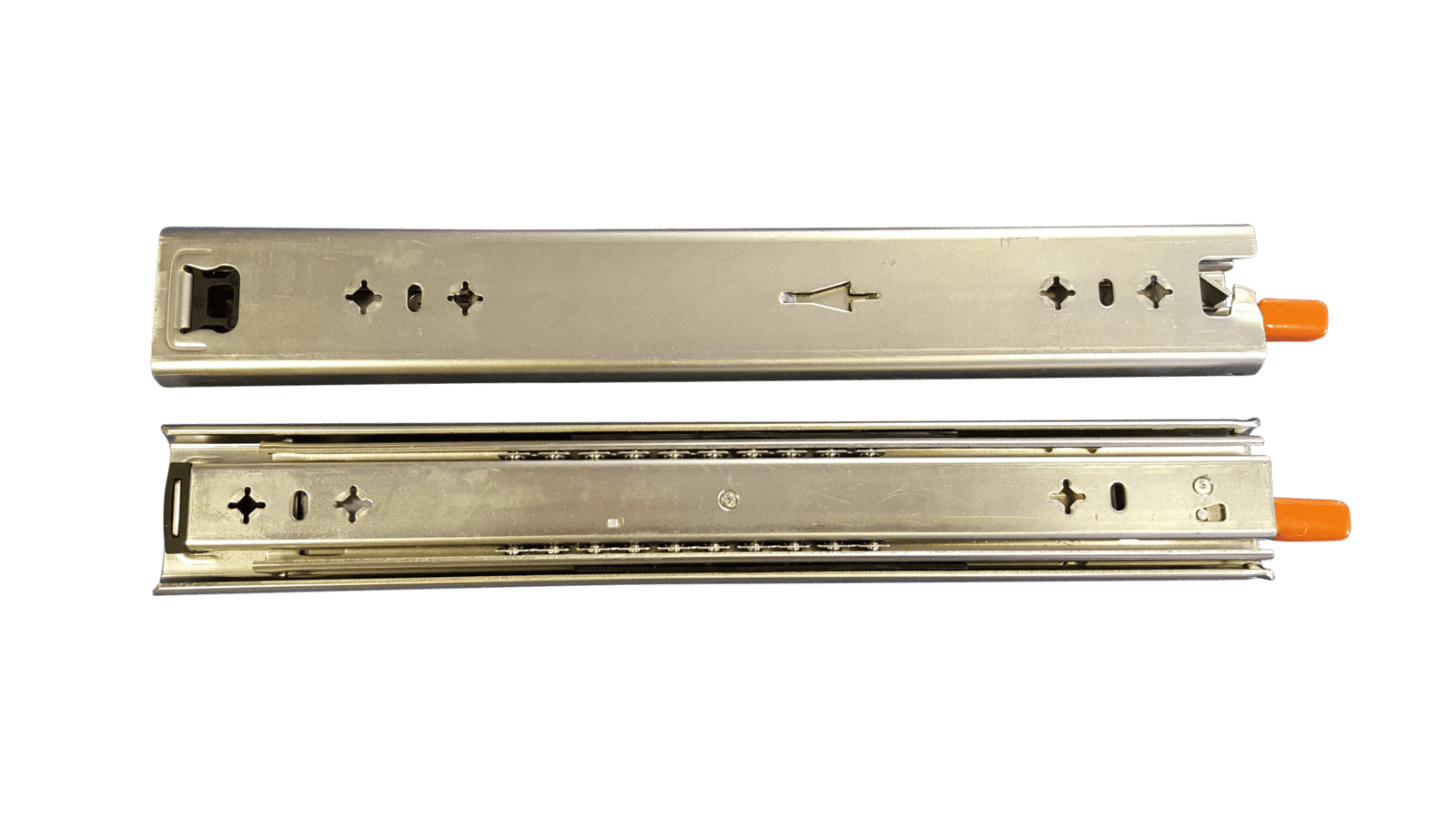

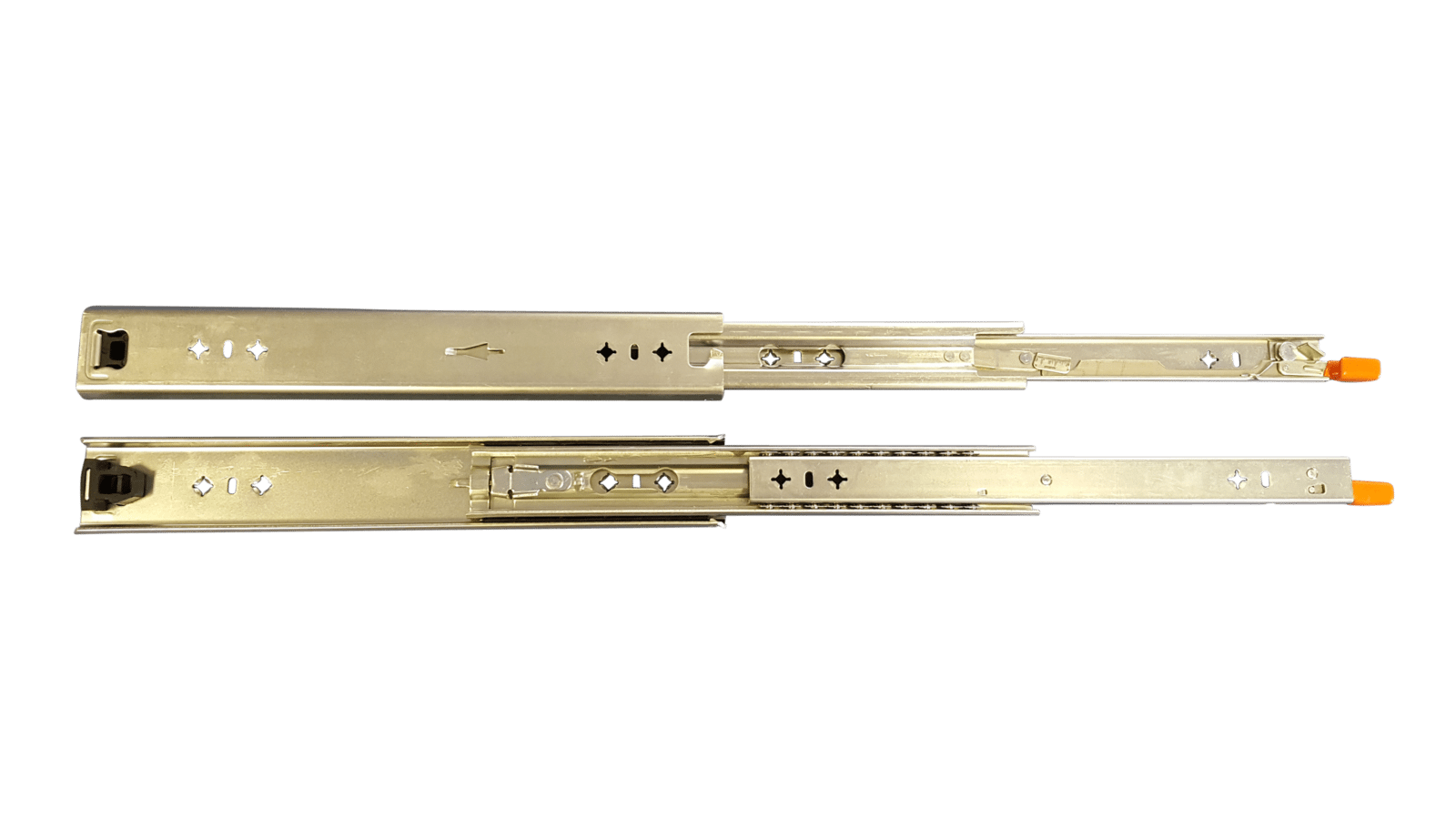

Locking Drawer Slides – 125kg ‘Hercules Series’
$81.00 – $152.00
Medium duty locking drawer slides with a maximum load capacity of 125kg’s. These drawer slides are heavily used in Australia’s toolbox, caravan and camper trailer markets for pull out drawers and fridge slide slides. They have full extension and a disconnect feature making them ideal for a large range of install applications.

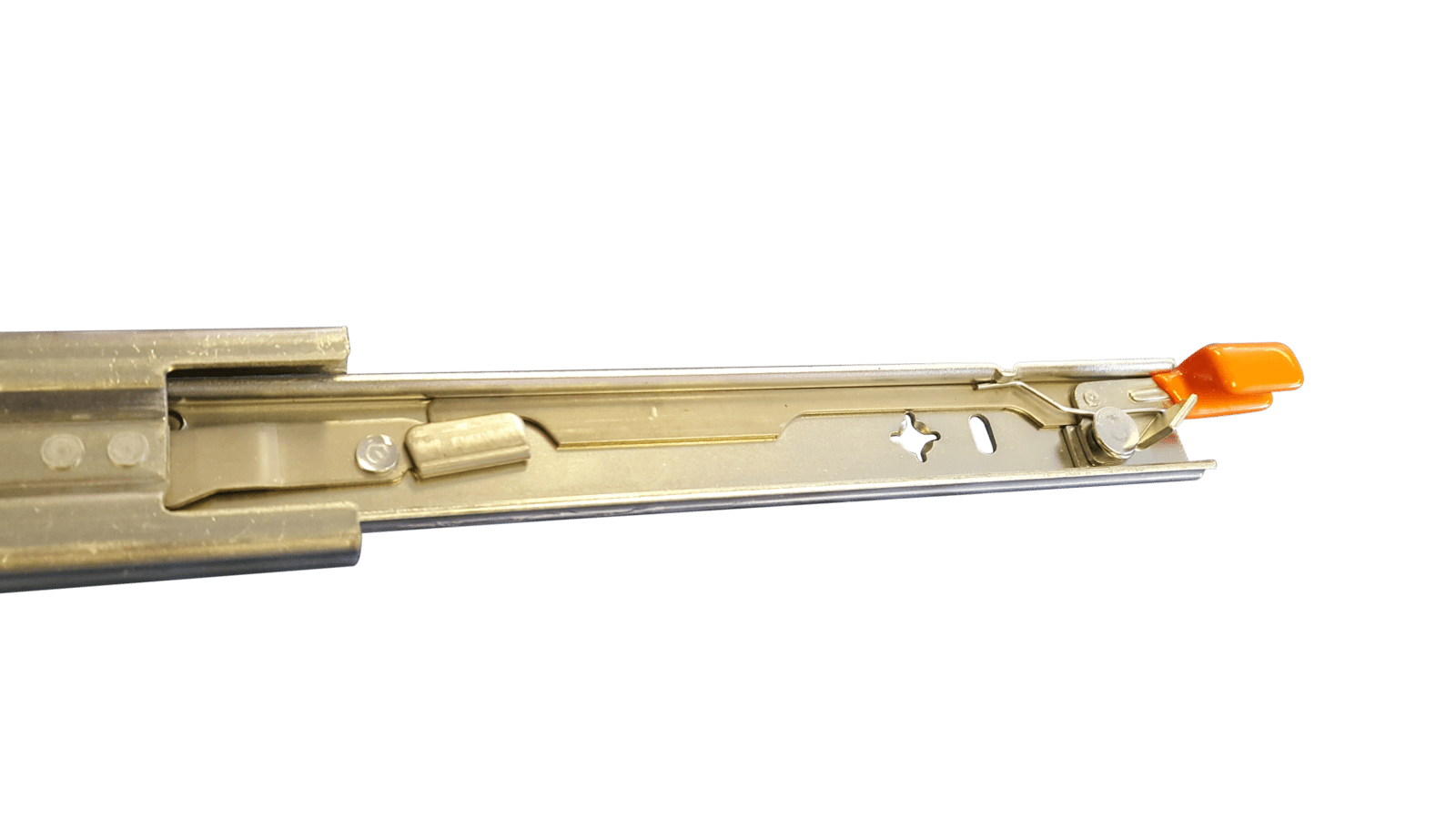

- Orange Locking Leavers add +25mm to advertised length
- Weight capacity: 125kg (Based on 500mm square drawer system as you go longer and wider carrying capacity reduces)
- Material made from: high strength cold rolled steel.
- Cycle tests in manufacture: 50,000 cycles.
- 100% extension: 100% extension
- Each Purchase contains THE PAIR
- Drawer Slides weight approximately 529 grams per 100mm (Per Pair)
Please Note: Refer FAQ Tab for common drawer slide related questions
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Dunn & Watson 125kg Locking Drawer Slides – Built for Heavy-Duty Performance
The Dunn & Watson 125kg Locking Drawer Slides are engineered to provide robust support and secure functionality in demanding environments. Ideal for applications such as fridge slides, vehicle cargo drawers, and toolbox systems, these slides offer both lock-in and lock-out features, ensuring stability and safety during transit.
Key Features
-
Weight Capacity: 125kg (based on a 500mm square drawer system; capacity decreases with increased length or width)
-
Available Lengths: 356mm to 1016mm
-
Material: High-strength cold-rolled steel with a durable zinc-plated finish
-
Extension: Full extension for maximum access
-
Locking Mechanism: Lock-in and lock-out features for secure operation
-
Locking Lever: Adds 25mm to the overall closed length
-
Weight per Pair: Approximately 529 grams per 100mm
-
Cycle Testing: Tested to 50,000 cycles to ensure longevity
Applications
These drawer slides are commonly used in the manufacture of fridge slides and vehicle cargo drawers, particularly in the Australian toolbox, caravan, and camper trailer markets. Their full extension and disconnect feature make them ideal for a wide range of installation applications.
FAQs
Are these drawer slides sold by the pair?
Yes, all our drawer slides are sold in pairs. This means you get a left and right hand runner, enough to build one drawer.
Can I run one locking and one non locking drawer slide on my setup?
You must either have both non locking or locking drawer slides. Splitting the pairs doesn't last long term. One locking leaver struggles to keep your drawer square and leads to failure of the locking mechanism in the future and voids your warranty. To counter this issue we have developed a locking leaver bar so one hand can operate both locking leavers at the same time. Please see link for leaver bar kits https://trailerpartsdirect.com.au/shop/drawer-slides/drawer-slide-accessories/227kg-locking-leaver-bar-latch/

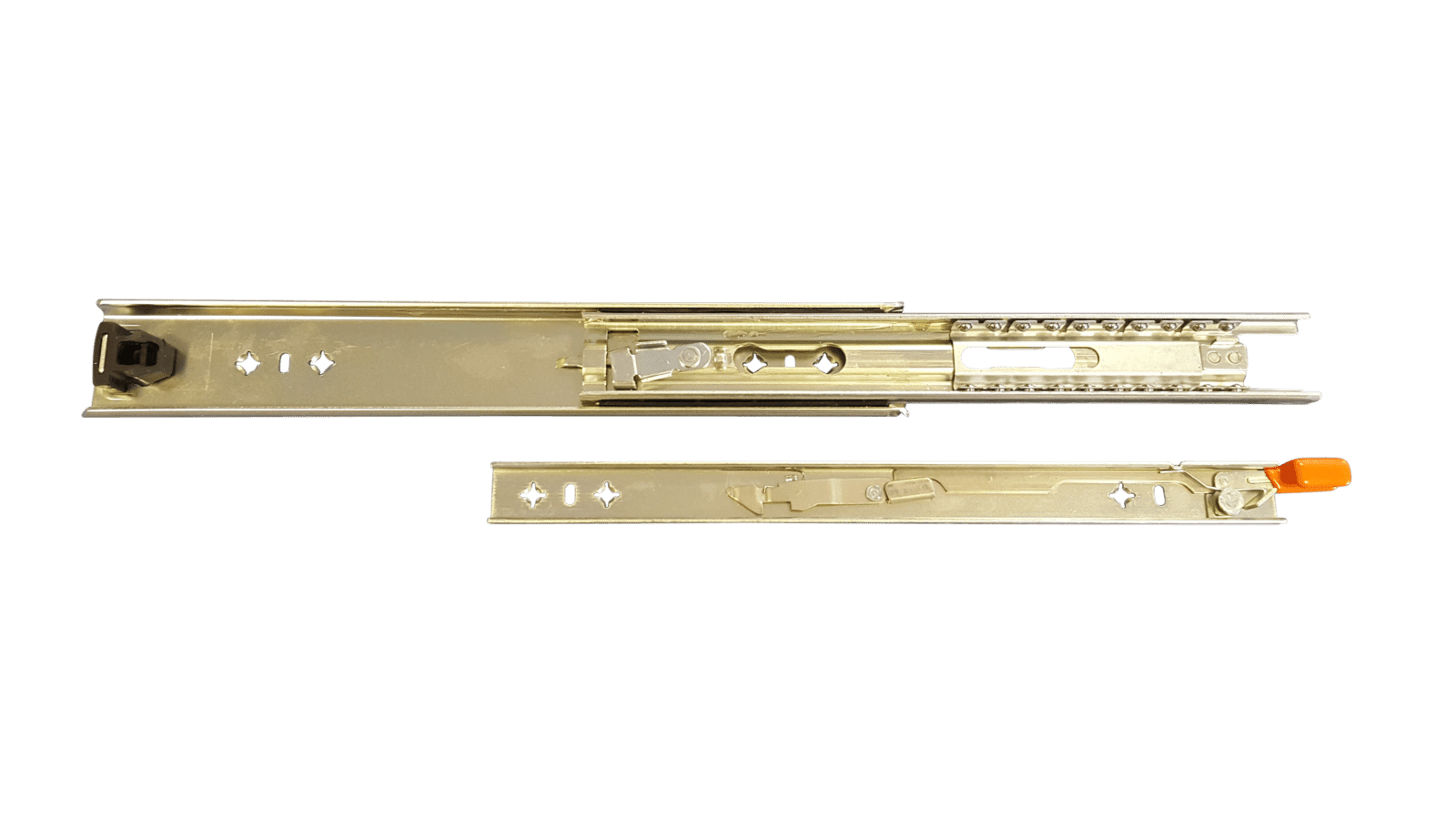

How do I disconnect and rec-connect slides?
There is a video demonstration on this page that shows how to disconnect and re-connect your drawer slide. If you are still unsure we recommend you contact our customer service team for assistance before any damage is caused to the runner 1300210549.
Can I lay these flat for install?
No, drawer slides must be installed vertically. Whilst they will operate laying flat, they are not designed to work this way and there is no load rating for a flat mounted install. Installing your drawer slides flat will also void your warranty.
Is the advertised length extended or closed?
The sizes noted are the length of the runners from nose to tail in a closed position. This closed length the leaver tab at the front of all locking slides. These tabs add +30mm to the overall closed length noted.
What size bolts do I use for install?
Bolts used in drawer slide install must have a low profile head. Any bolt head too bulky will result in them colliding inside the slide during the opening and closing process. For 125kg and 227kg series drawer slides Dunn & Watson recommend 5mm bolts and nuts.

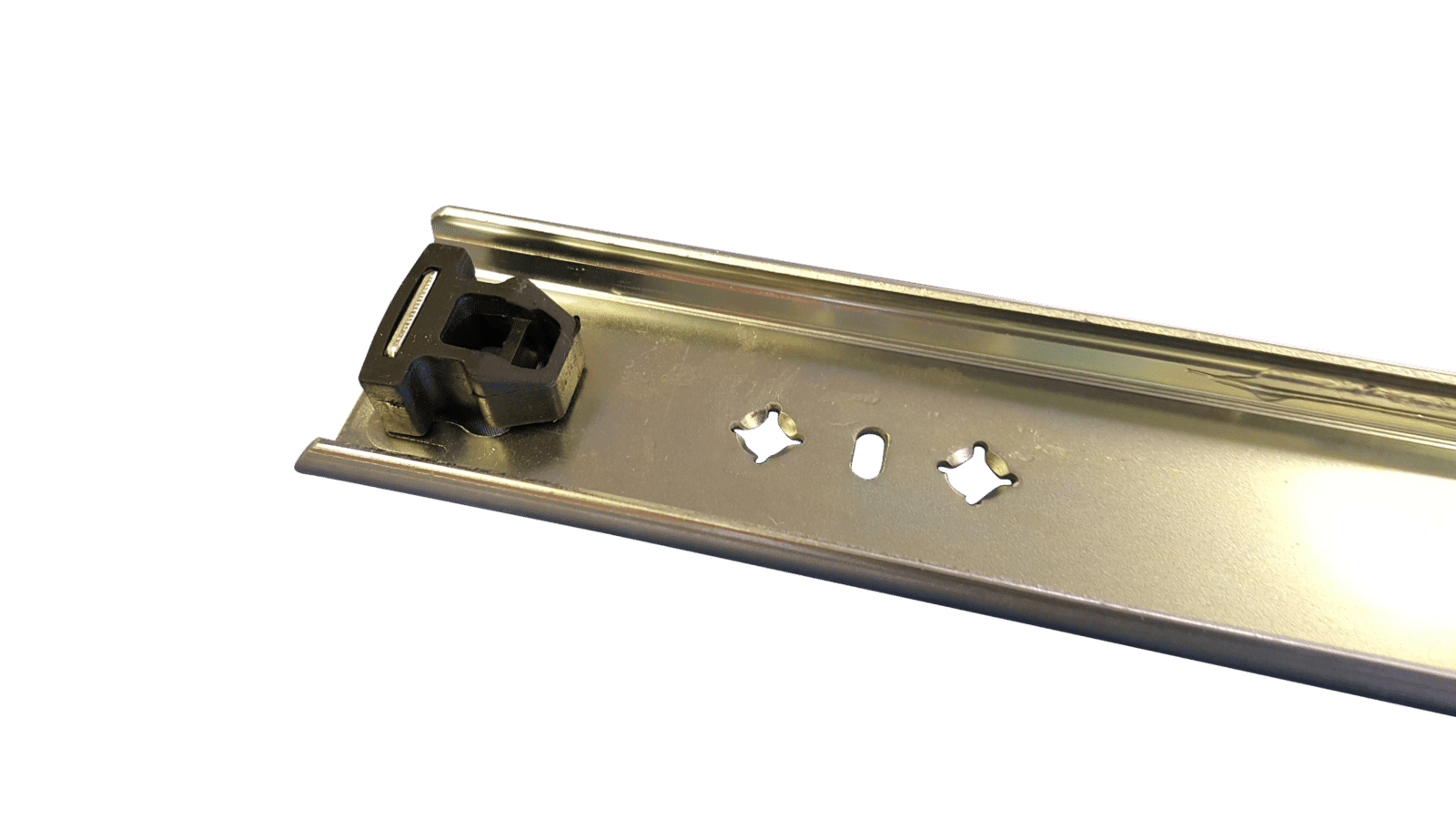

Why has my rear stopper fallen off or damaged?
Slamming your drawer can bend the rear fitting holding your stopper in place. Movement of this fitting from excessive force changes the stationary location of the stopper designed to run parallel with the slides. Once this stopper is no longer in its original position it collides with the slides cause pieces of it to beak off and evenly fall apart.
Why is my drawer rattling forwards and backwards?
Slamming your drawer causes your rear stopper to move (Refer FAQ above 'Why has my rear stopper fallen off or damaged?'). The factory location of the rear stopper keeps your runner in a tight position at its true 0% extension, when the rear stopper is moved due to slamming it creates play in the slide to rock between it's original 0% extension point and the gap to the moved stoppers new location. Bending the stopper forward to its original location will eliminate this play.
