Bushmaster Sliding Top Cargo Drawer – 750mm to 1750mm (Aus Made)

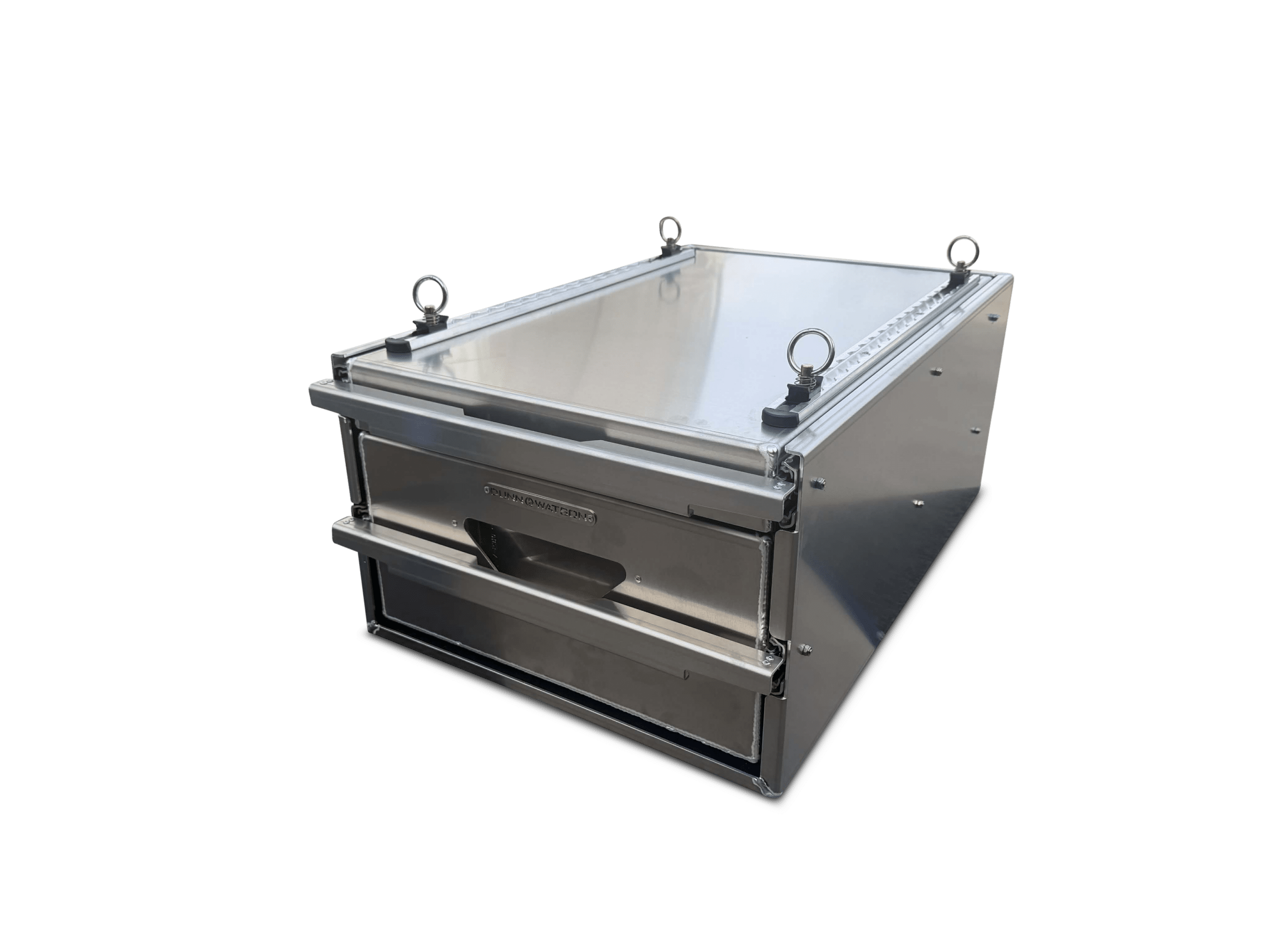

Bushmaster Series 4wd Cargo Drawer Side On

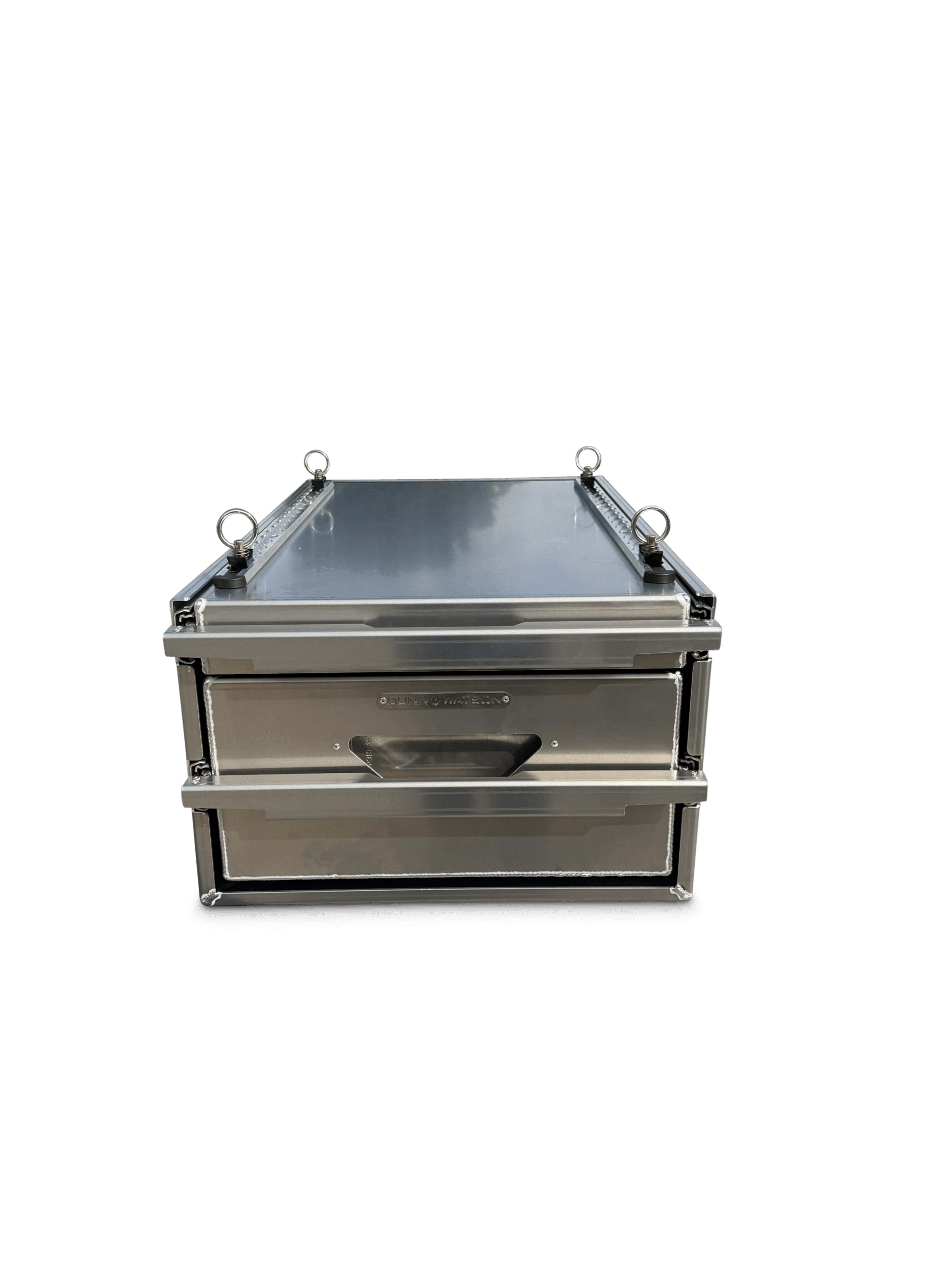

Bushmaster Series 4wd Cargo Drawer Front On

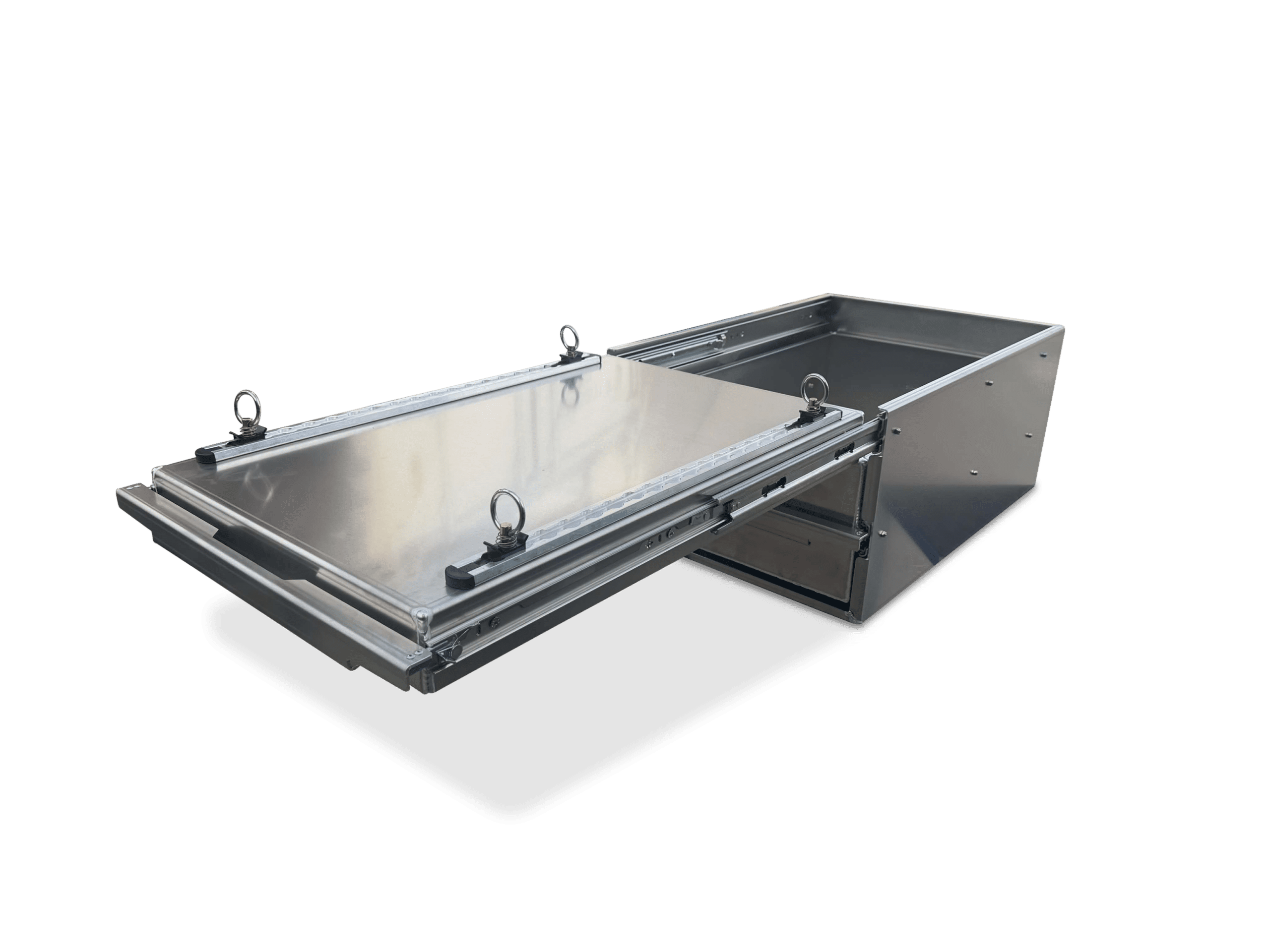

Bushmaster Series 4wd Cargo Drawer Top Tray Slide Open

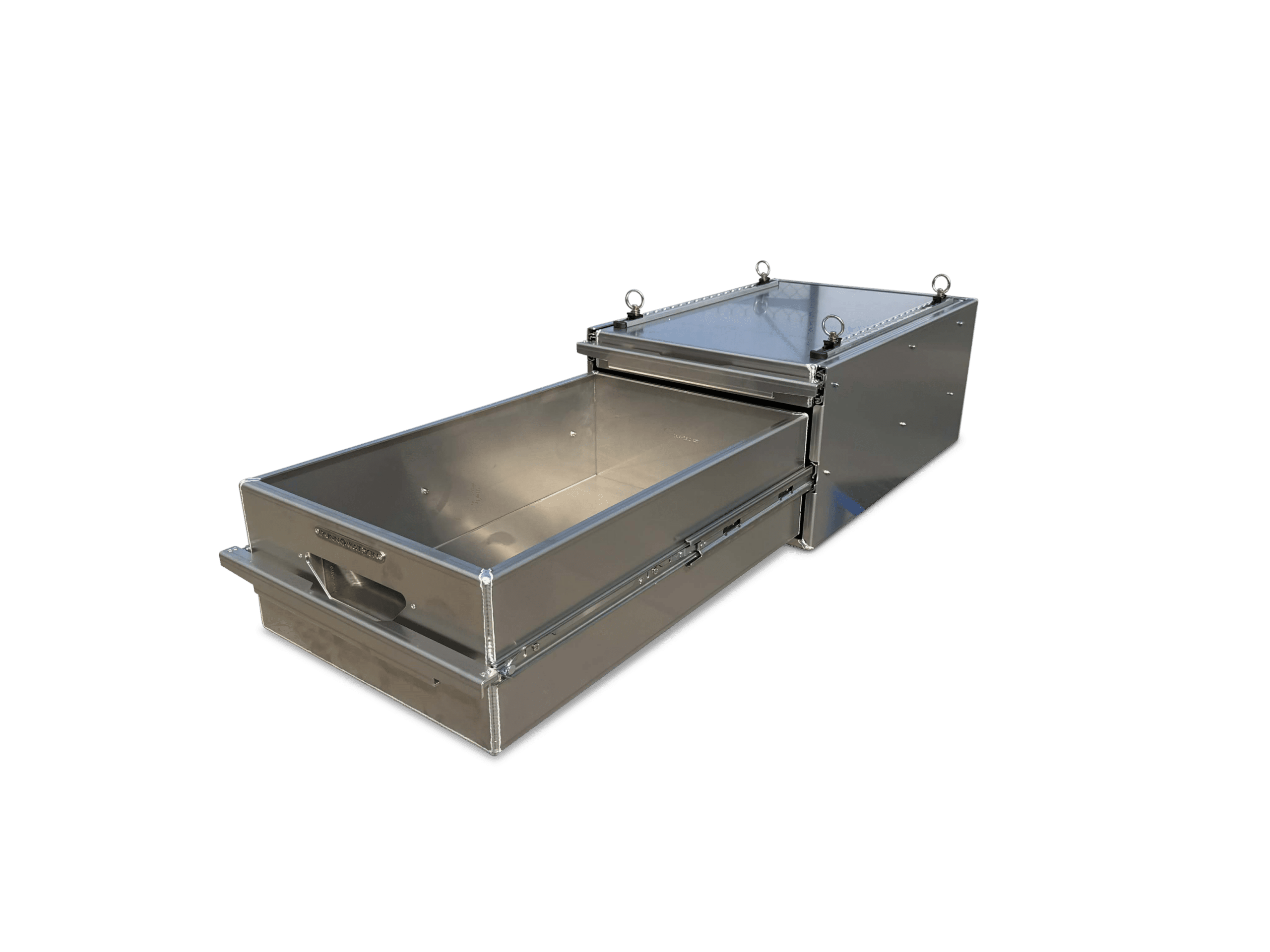

Bushmaster Series 4wd Cargo Drawer Botton Drawer Extended

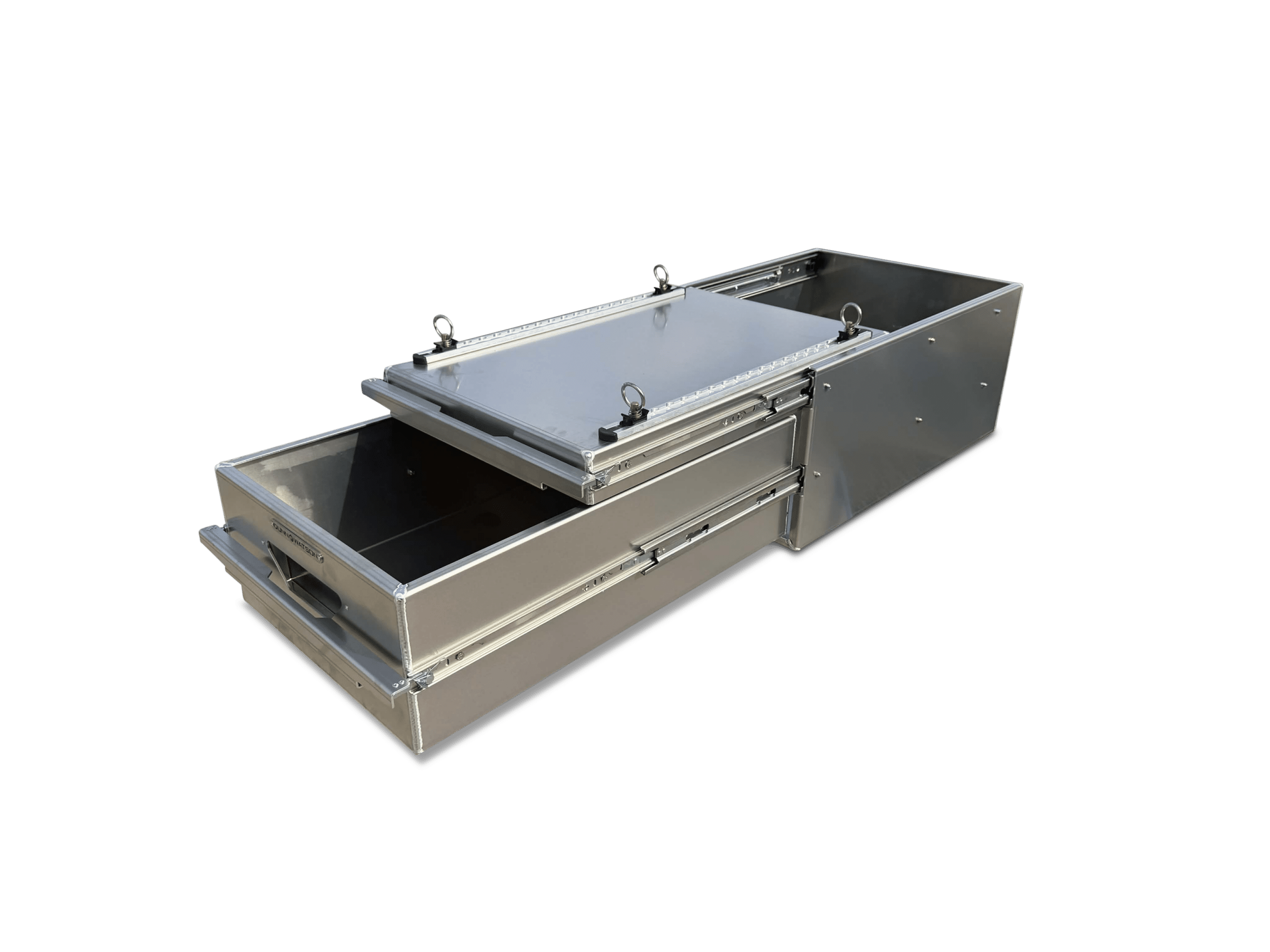

Bushmaster Series 4wd Cargo Drawer Half Open

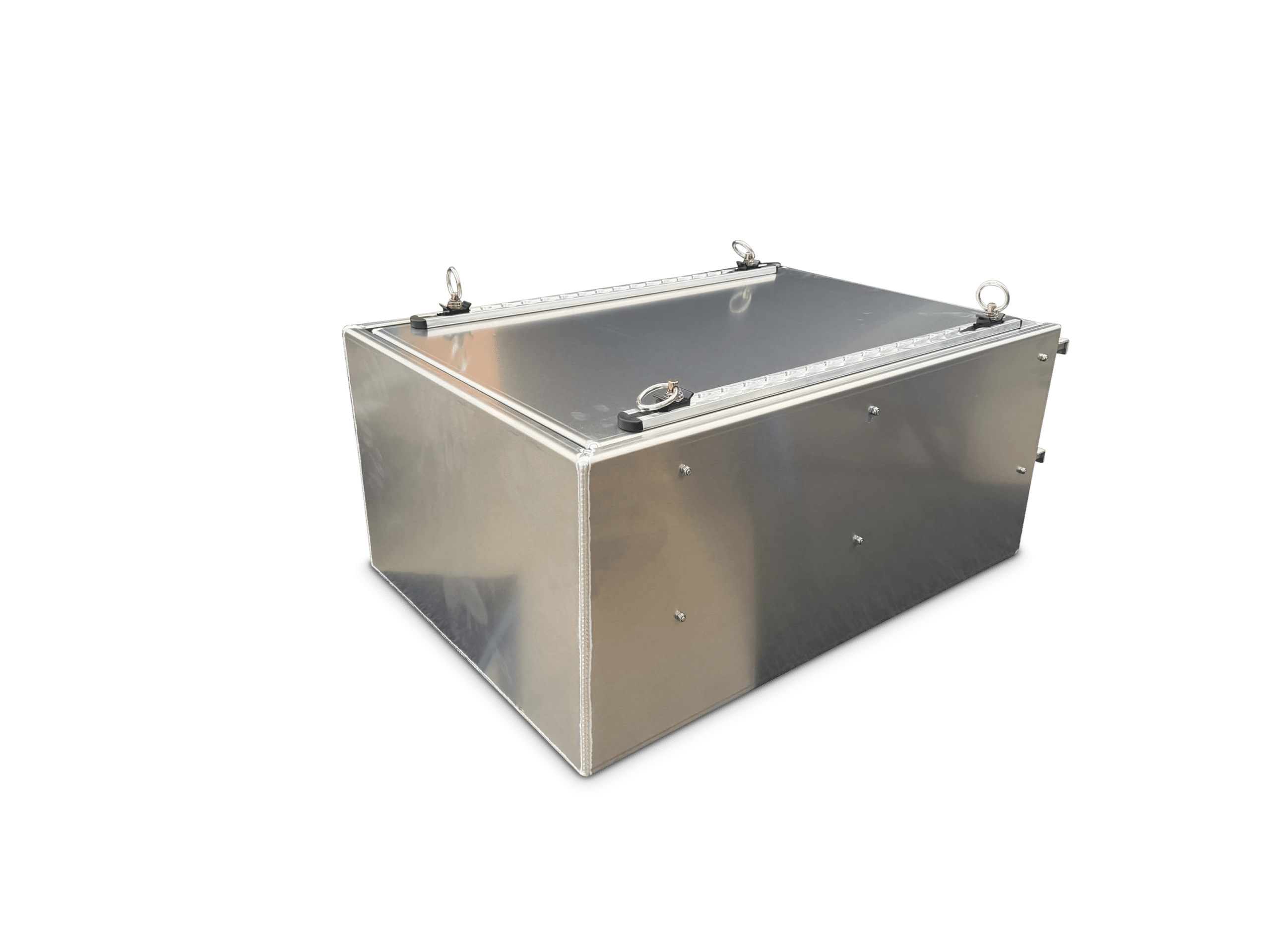

Bushmaster Series 4wd Cargo Drawer Rear

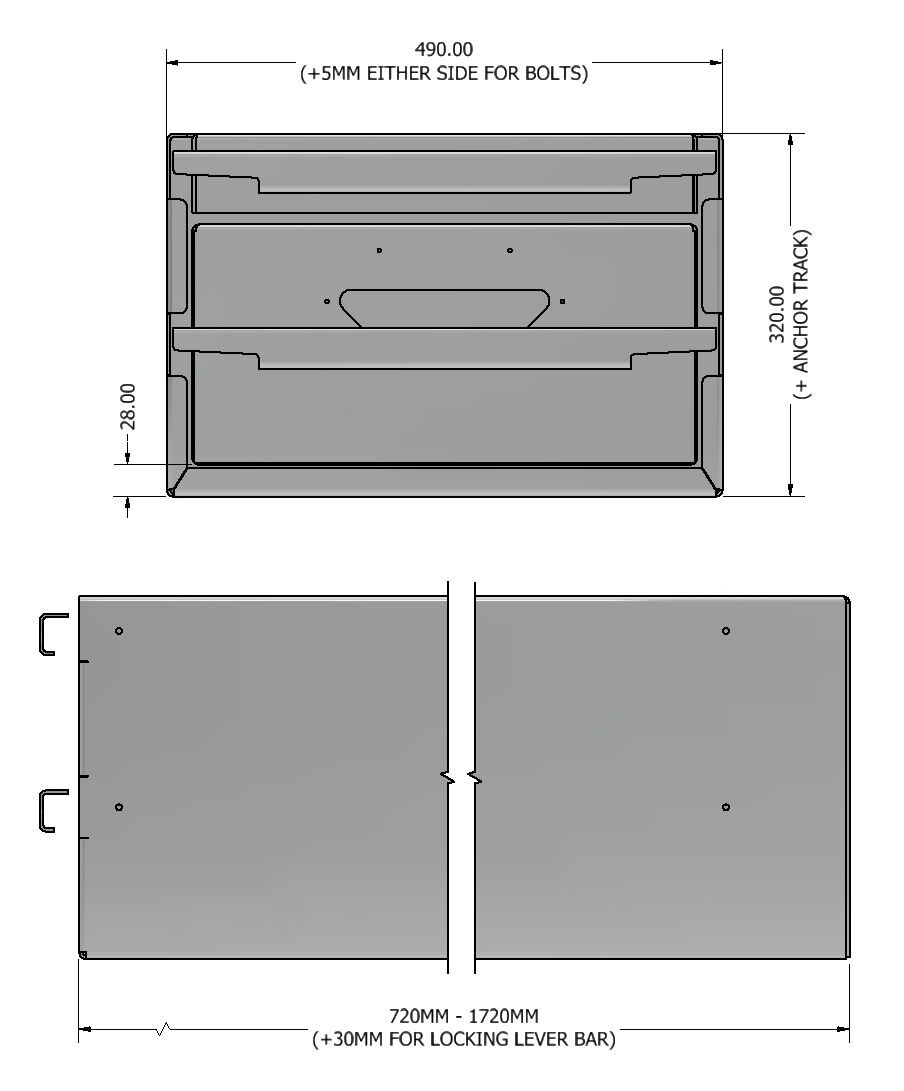

STOCK BUSHMASTER WEBSITE DRAWING
Custom Designed 4wd Canopy Pantry Pro Textura Black
Dunn & Watson 4wd Ute TRay And Canopy In Pro Textura Black
Dunn & Watson Pro Textura Black Fridge Slide
Yes

Price range: $1,150.00 through $2,675.00

Buy Now, Pay Later options available

Built by Dunn & Watson Customs, this Australian Made sliding top cargo drawer is the ultimate storage upgrade for your 4×4 or camper setup. Welded from 3mm aluminium for strength and lightness, it features full extension slides on either 125kg or 227kg lock-in/lock-out mechanisms depending on the length. The adjustable anchor track on top transforms the drawer into a versatile platform for fridge slides or additional gear storage. Ideal for ute tubs, wagons, or canopy setups, this system ensures easy access and secure storage during rugged off-road adventures. Industry-recognized hardware and heavy-duty slides guarantee durability and smooth operation every time.

  • Sliding Top
  • Anchor track (x2 tracks)
  • Adjustable Tie Down Rings (x4 rings)
  • 3mm Aluminium Construction
  • Australian Made
  • Locking Drawer Slides
  • Can be custom built to size
  • Drawers made inhouse and aren’t always in stock. Units may have 3-4 week Leadtime if in-between batches.

Powder coating:

  • Colour: Dulux Protexture Black – Flat | 20T9215F (Only)
  • Allow 2-3 week Leadtime to be shipped from order placed
  • See image gallery above for examples
  • NO returns on goods once powder coated

x

Recommended products

Rectangular metal storage drawer with latch handle and Dunn & Watson branding on front.

4wd Cargo Drawers

Eco Series Cargo Drawer – 325mm High (Australian Made)

Price range: $800.00 through $1,700.00
Select options
This product has multiple variants. The options may be chosen on the product page
4wd Clear Top Bag For Cargo Drawer 11

Canvas and Storage Gear

Clear Top 4wd Canvas Storage Bag

Price range: $40.00 through $65.00
Select options
This product has multiple variants. The options may be chosen on the product page
1325mm Extra Long Fridge Slide - 3

4x4 Ute Fridge Slides

1325mm Extra Long Fridge Slide

Price range: $650.00 through $830.00
Select options
This product has multiple variants. The options may be chosen on the product page
Sale!
MSA Drop Down Fridge Slide with Table - 3

4wd Fridge Slides

MSA Drop Down Fridge Slide with Table

Price range: $999.00 through $1,250.00
Select options
This product has multiple variants. The options may be chosen on the product page
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Bushmaster Drawers Size Chart

Locally made aluminium drawers with a sliding top and tie down points. Commonly used for storage in canopies, trailers and 4wds, this unit provides storage in the drawer as well as the slide that allows for easy access to a fridge or other items on top. The 750mm to 1250mm drawers are built with our 125kg locking drawer slides, they can be upgraded to 227kg slides if required. The 1450mm and 1750mm models come with 227kg locking slides as standard.

Standard units are 500mm wide x 325mm high. We can also build these at custom sizes, if you would like a quote for a different size please send us a email and we’ll work it out.
Internal drawer height of the standard height of the bushmaster sliding top drawer = 230mm
Please Note: +10mm to overall width is required for nut heads either side of unit.

STOCK BUSHMASTER WEBSITE DRAWING
