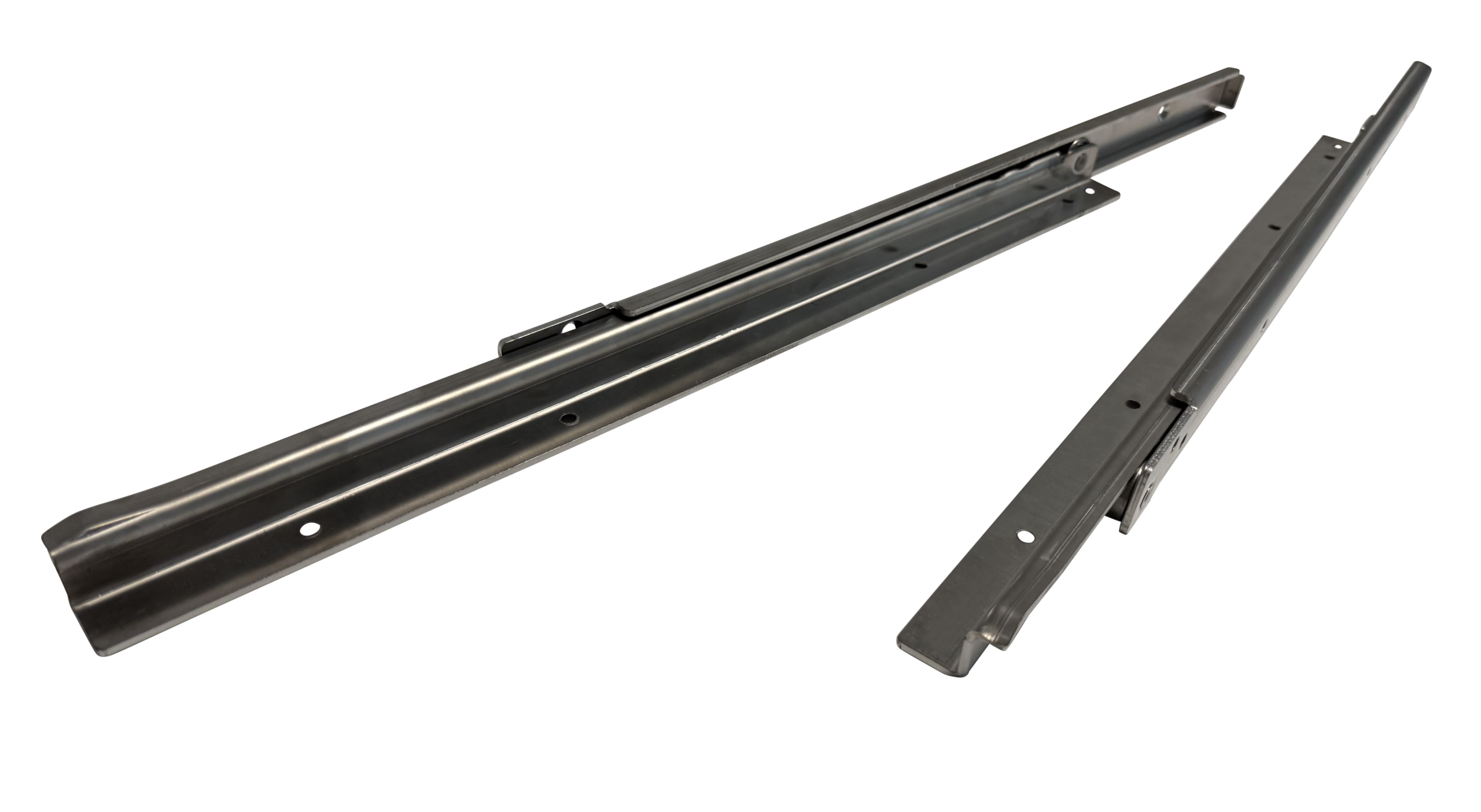

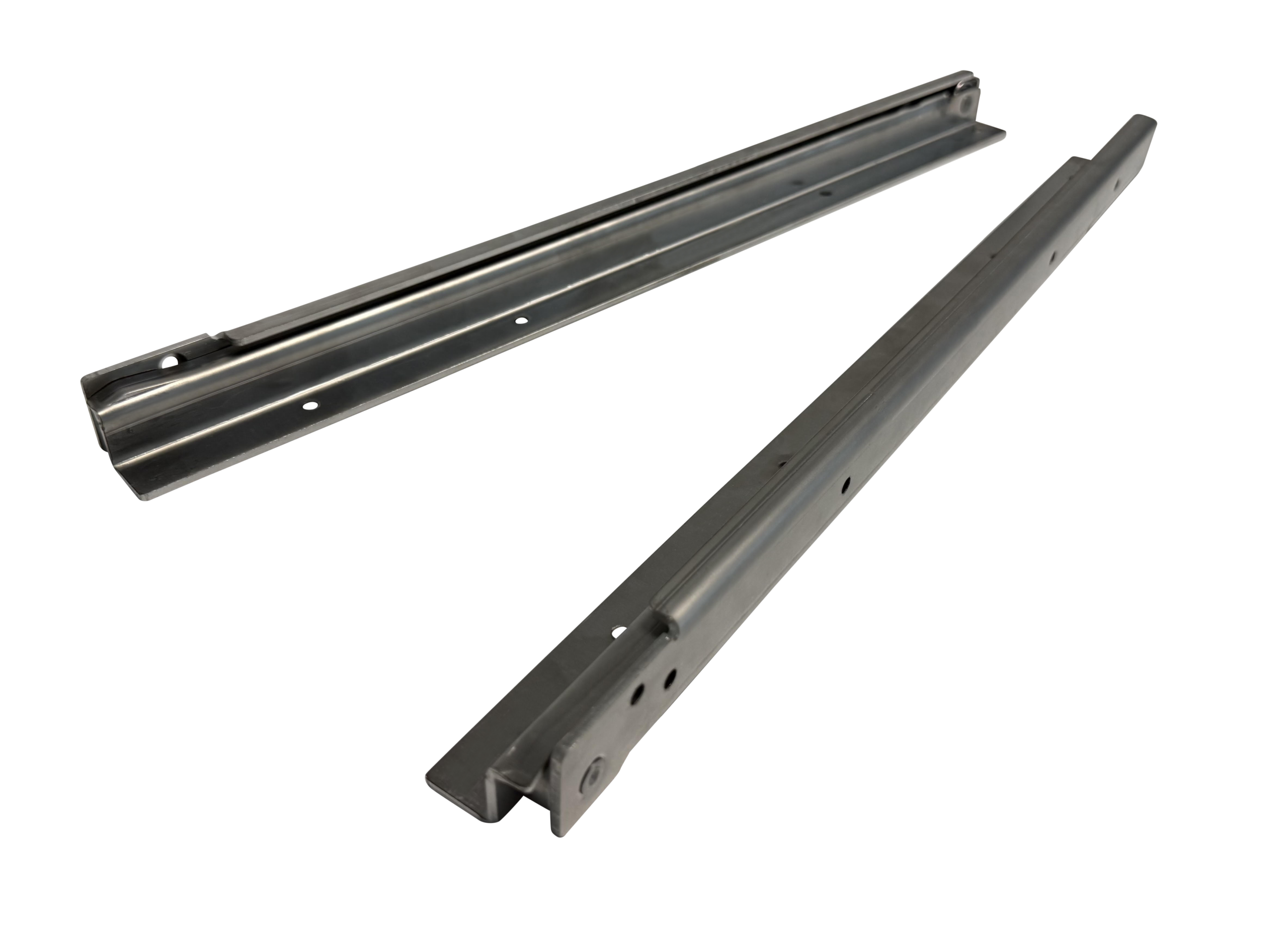

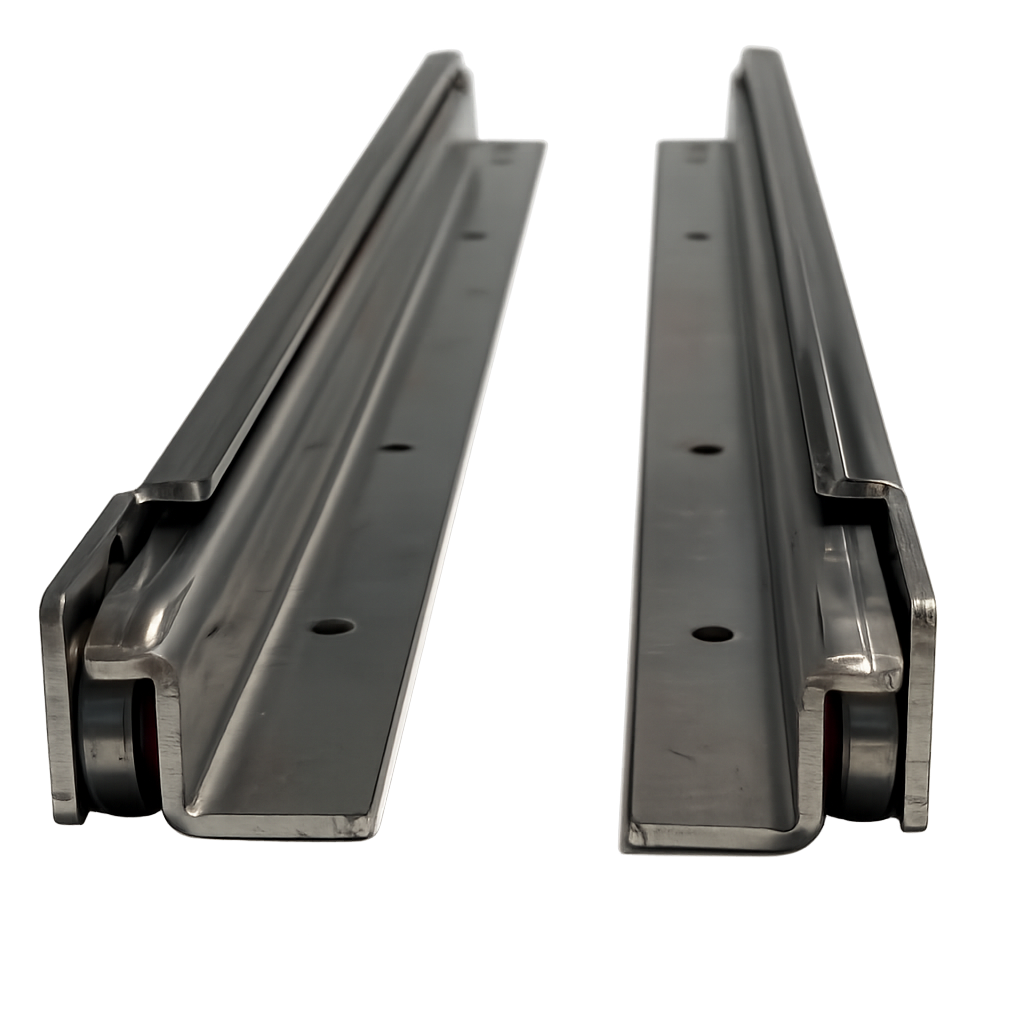

Base Mount Drawer Slides – 100kg / 304 Stainless Steel
Price range: $170.00 through $270.00
100kg Stainless Steel Base Mount Drawer Slides – Marine Grade 304 Stainless Steel
Dunn & Watson’s 100kg Stainless Steel Base Mount Drawer Slides are designed for demanding outdoor and marine environments. Manufactured from corrosion-resistant 304 stainless steel and featuring sealed bearing rollers, these slides deliver smooth operation, exceptional durability and reliable performance in wet, dusty and coastal conditions.
Features
- Manufactured from premium 304 stainless steel
- Excellent corrosion resistance for marine and coastal environments
- Sealed bearing roller design prevents clogging from dirt, mud and sand
- Rated to 100kg capacity on a 500mm square drawer system
- Smooth and reliable operation in harsh outdoor conditions
- Tested to 50,000 operating cycles
- 75% extension travel
- Supplied as a pair
- Approximate slide weight: 510 grams per 100mm
- Available Sizes: 500mm, 600mm, 700mm, 800mm, 900mm & 1000mm
Whether installed in a boat, caravan, canopy, camper trailer or off-road vehicle, Dunn & Watson’s stainless steel base mount drawer slides provide long-lasting performance where moisture, salt spray and harsh conditions are part of everyday life.
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The Dunn & Watson 100kg Stainless Steel Base Mount Drawer Slides are engineered for applications where standard drawer slides simply won’t survive. Constructed from high-quality 304 stainless steel, these base mount runners provide superior corrosion resistance, making them ideal for marine, coastal, off-road and outdoor installations.

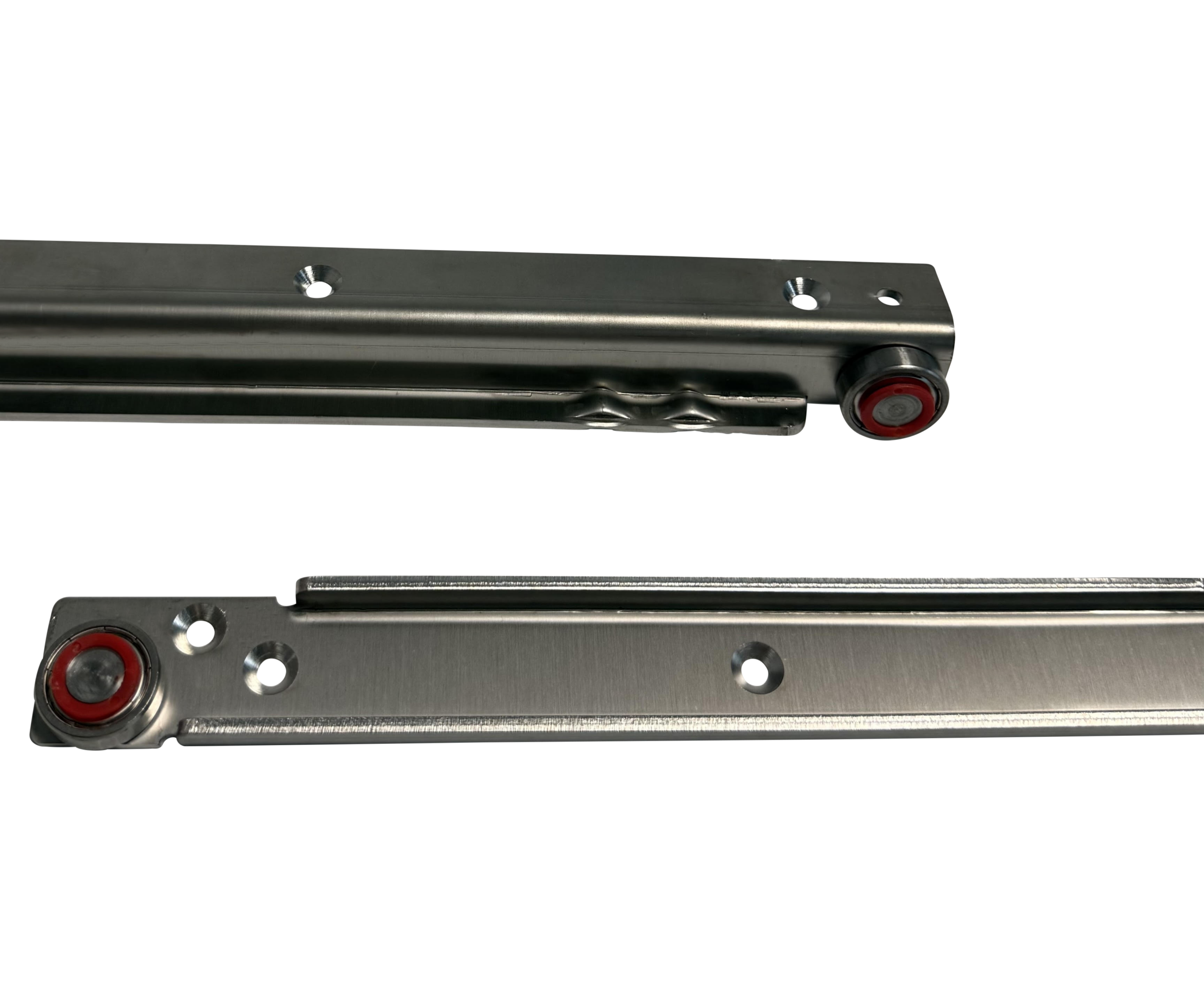

Often referred to as soft rollers, base mount drawer slides operate on sealed bearing rollers mounted underneath the drawer. Unlike traditional telescopic slides, there are no internal tracks to become clogged with dirt, sand or mud. If debris does build up, the slides can simply be washed clean with a hose and returned to service.
The 304 stainless steel construction offers excellent protection against rust and corrosion, making these runners particularly suited to boats, marine equipment, camper trailers, caravans, service vehicles and outdoor storage systems exposed to the elements.
Rated to carry up to 100kg based on a 500mm square drawer system, these slides are commonly used for fridge slides, BBQ slides, battery systems, slide-out solar panels, tool storage and heavy-duty drawer applications.
