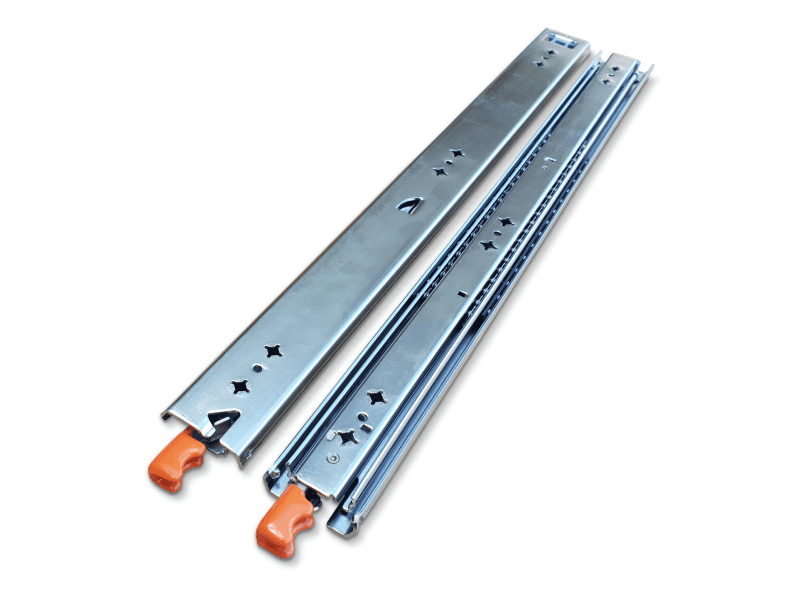

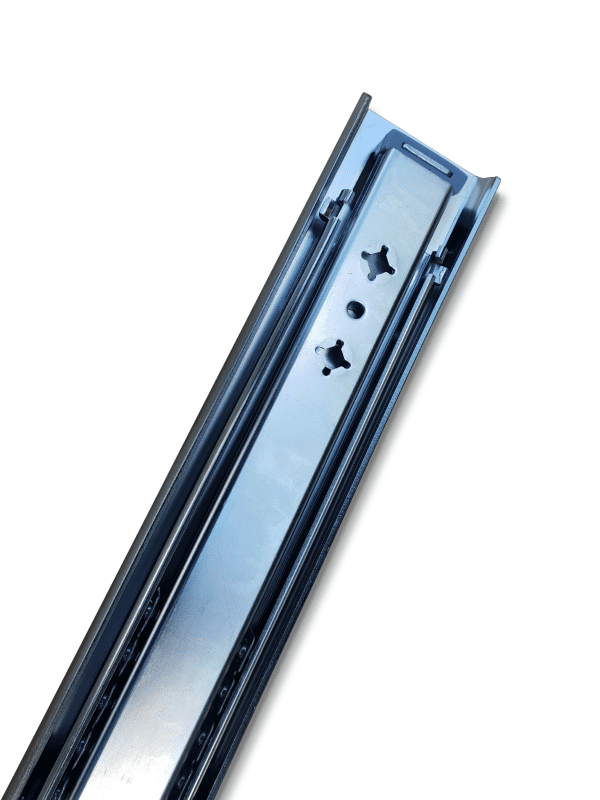

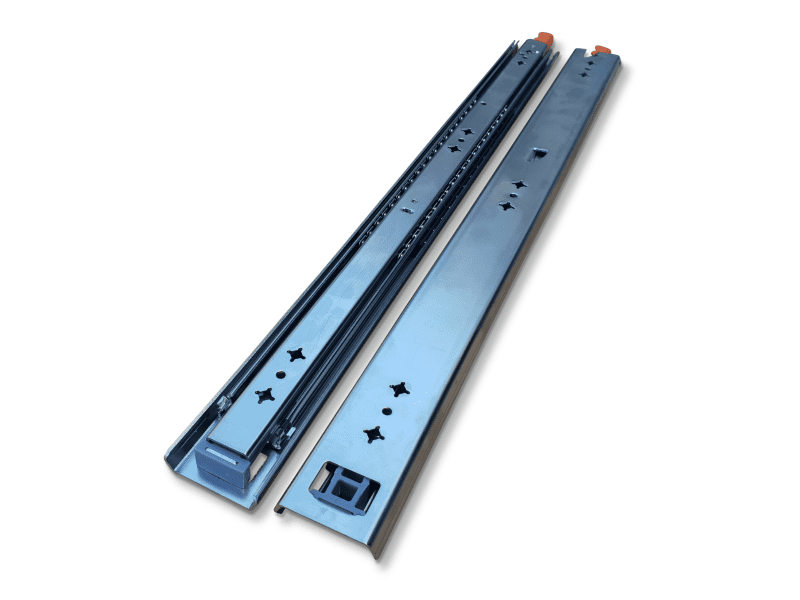

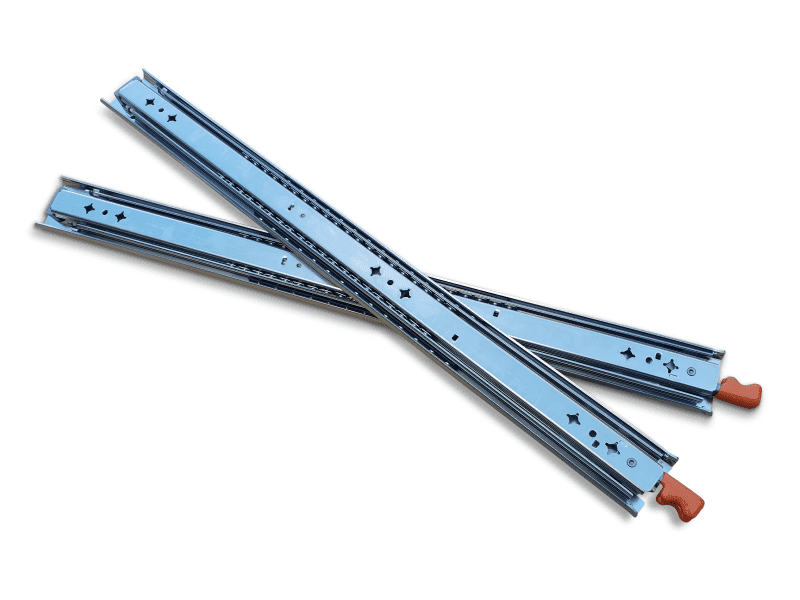

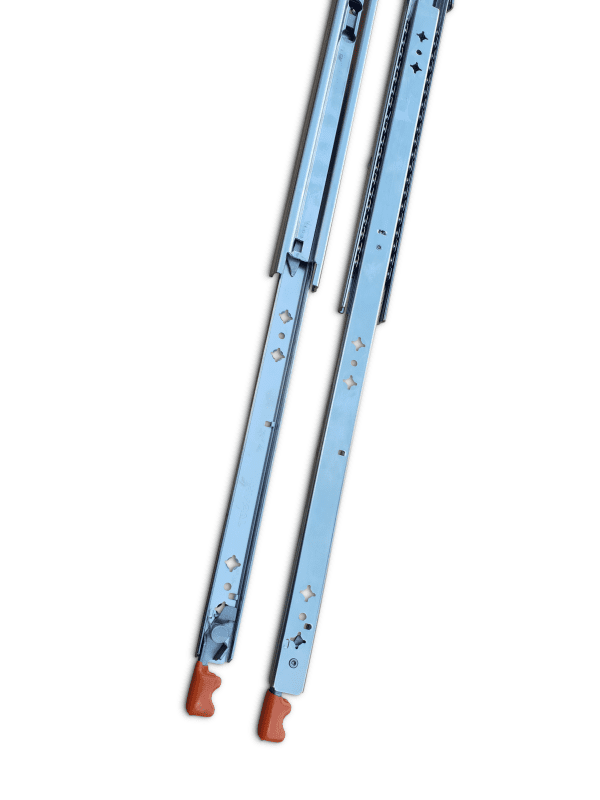

Stainless Steel 125kg Locking Drawer Slides
$170.00 – $315.00
- Available In Lengths 500mm – 1000mm
- Full Extension
- Locking Lever Adds 25mm to Overall Closed Length
- Weight Rating Based on 500mm Square Drawer
- Each Purchase Contains THE PAIR
- Drawers slides weigh approximately 540 grams per 100mm
- Please Note: Refer FAQ Tab for common drawer slide related questions
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Everything you need to know about our stainless steel 125kg locking drawer slides

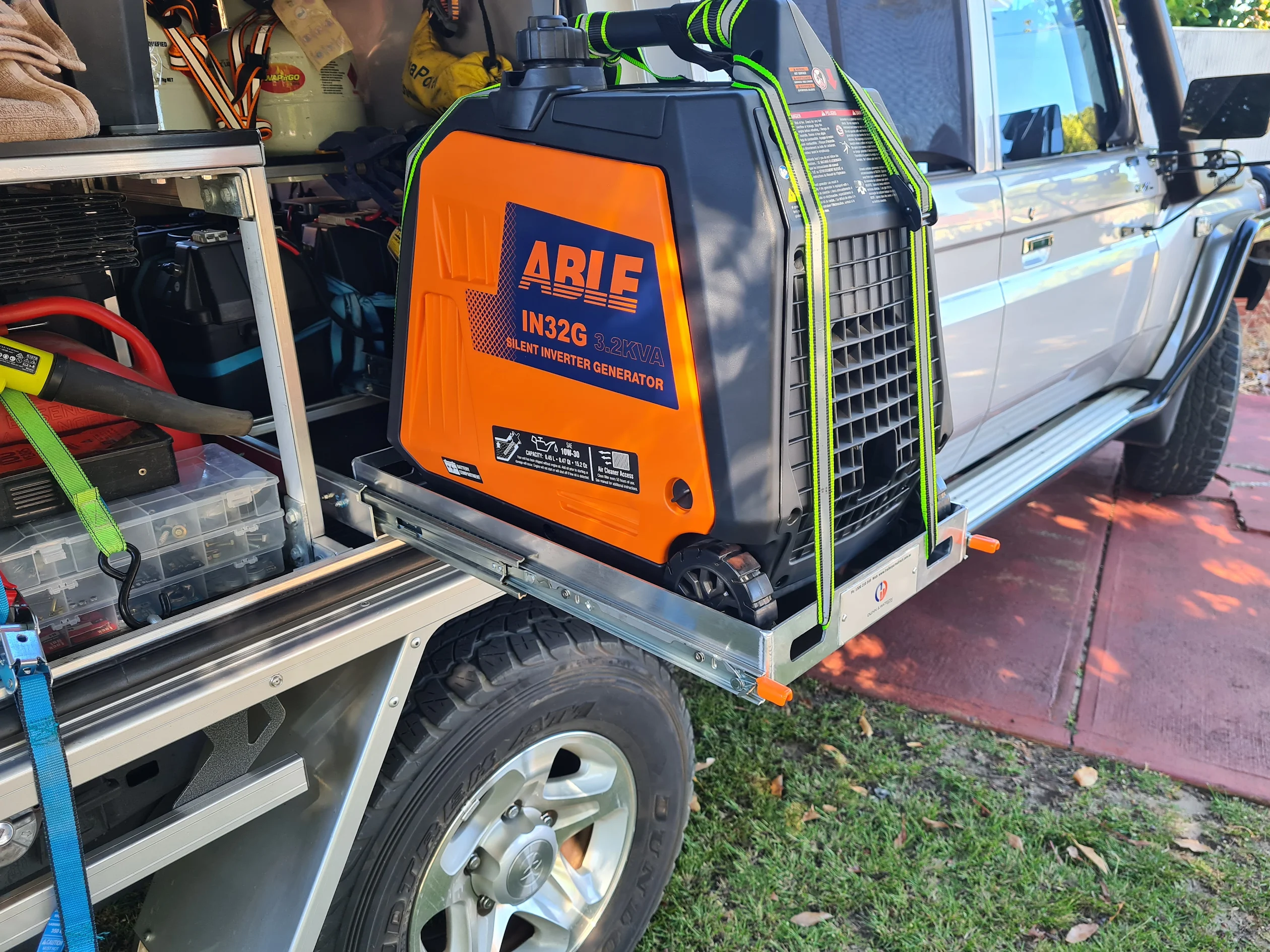

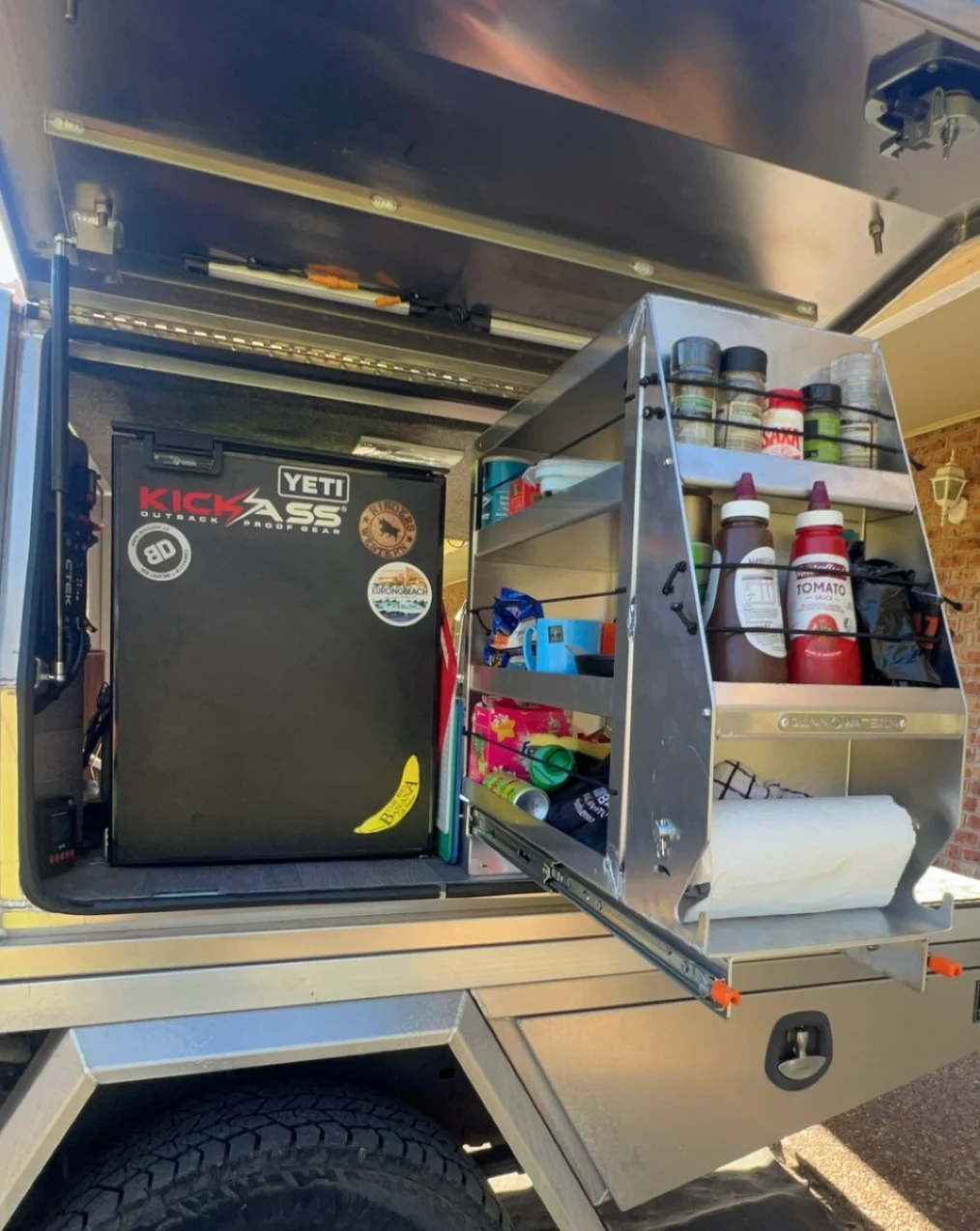

The Dunn & Watson medium duty 125kg locking drawer slides are perfect for tradies, 4WD enthusiasts, campers and boaties. Installed as runners in your boat or vehicle’s drawer systems, they not only allow you to smoothly open and close your drawers, but they also provide a much-needed safety locking feature.
This means that your drawers won’t slide back and forth during transit or when you’re parked on a slope. Since they are made from 304 grade stainless steel, there’s also the added benefit that they won’t corrode in salty environments. This means that they are ideal for anyone who lives, works or plays in coastal areas or for boaties who need to keep everything shipshape on board.
What sizes are available?

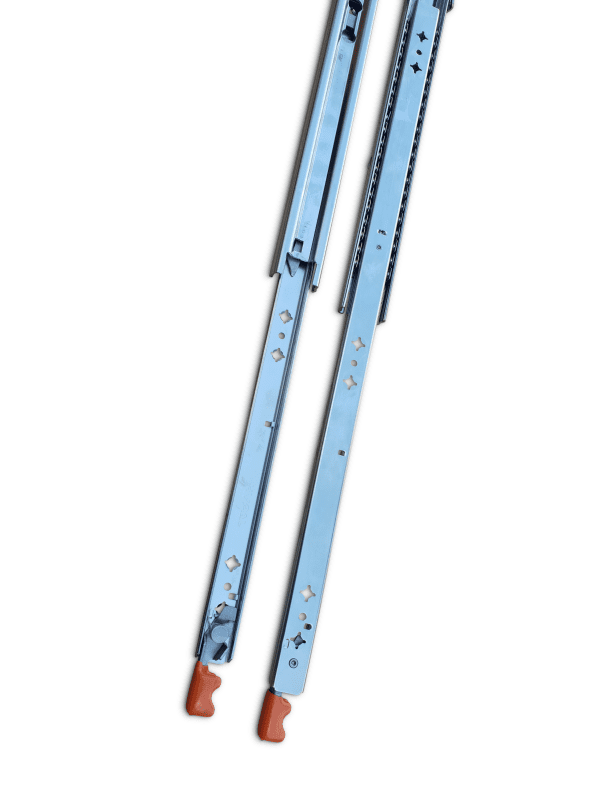

These medium duty 125kg locking drawer slides are available in lengths starting from 500mm to 1000mm, so you should find a pair that suits your project quite easily. These runners offer you a full extension, so for example, if you select the 1000mm sliders, they will extend to their full length of 1000mm. The full extension feature gives you easy access to whatever is stored at the back of the drawers.
It’s also important to note that since these are locking drawer slides, the triggers that lock and unlock these runners are located at the front of each slider. So when you install them into your drawer system, you need to add an additional 25mm to the required length. So in the above example, you would need to make sure that the available space for these runners is 1000mm + 25mm, which totals 1000mm.
How do these 125kg locking drawer slides operate?
These 125kg locking drawer slides operate just like non-locking drawer slides, except that they have the additional locking feature. This means that when they are closed and locked they will not slide open when you are driving or parked on a slope. Likewise, when they are locked in the open position, they will remain open and will not slide closed or be pushed closed. The only way they can be opened or closed is if you release the trigger mechanisms located at the front end of each slider.
This is a huge safety feature that prevents fingers being jammed inside the drawers as they slam shut or people being injured if they suddenly spring open. Another great feature is that the runners will only lock into place when they are fully open or fully closed, so you need to make sure that they are not left partly open. When they are in the correct locking position, you will hear the mechanism click into place.
To operate these 125kg locking drawer slides, all you need to do is to release both the triggers at the same time and pull the drawer towards you until it reaches its full extension and locks into place. It will remain in this fully open position until you depress both the triggers again and push the drawer closed until you hear the trigger mechanism locking into place again.
Can these drawer slides be disconnected?

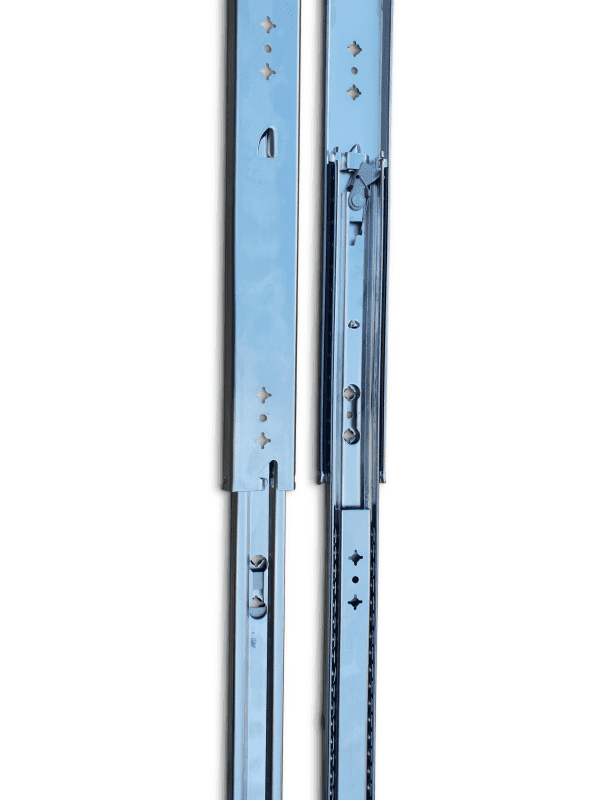

Yes, our medium duty stainless steel 125kg locking drawer runners can be disconnected. To do this, you need to open the slides to their full extension. If you press on the triggers again at this point, you can take the runner beyond the full extension and disconnect them. To reconnect the runners again, simply slide them back along the tracks until you hear them click into place.
What if the 125kg weight tolerance isn’t enough?
If the 125kg weight tolerance isn’t large enough for your project, then you can install a second pair of runners above the first pair. However, you need to remember that you can’t just add the weight tolerances. So installing two pairs of 125kg locking drawer runners, one above the other, doesn’t give you a 250kg weight tolerance. In fact, the rule of thumb is that you only gain an additional 75% of the weight tolerance of the second pair, so always keep that in mind. In fact, it’s better to add more drawers than double up on the runners, just because this reduces the risk of any injuries.
Can these 125kg locking drawer slides be retrofitted into your existing drawers?
Yes, our 125kg locking drawer slides can be retrofitted into any drawer system, as long as you have sufficient length available. You can install them into checker plate drawer systems, aluminium drawer systems and even carpet lined drawer systems.
What size 125kg drawer runners do you need?
Essentially, you need to select the size runners that match the weight tolerance you need. So if you want the full 125kg weight tolerance of these runners, then you should only fit the following lengths – 356mm, 406mm, 457mm or 508mm. That’s because the longer the length of the runners, the lower the weight tolerance. This means that if you install a pair of 125kg runners, but the length is 559mm, then the weight tolerance drops to 110kg; if you install runners with a length of 1016mm, it drops to 50kg. These calculations are based on a standard size 500mm square drawer, so if your drawers are a different size or you’re not sure which size to purchase, just give us a call and we’ll give you a hand. Always remember, however, that the longer the extension you need, the lower the weight the drawer can hold.
Benefits of our stainless steel locking drawer slides
One of the biggest benefits of our stainless steel locking drawer slides is that they are strong and long lasting. If you have ever installed regular hardware bought runners in your caravan, 4WD or boat, you’ll know that they don’t last long, particularly when you go off-road. The fact that they are made from stainless steel is an added bonus, because they won’t rust in corrosive environments, such as near coastal areas. Then, of course, you have the safety locking feature that ensures that your drawers are always locked and won’t slide back and forth when you’re driving or parked on uneven ground.
If you need any help deciding on the right length 125kg locking drawer slides you need for your project, don’t hesitate to call us on 1300 210 549 or shoot us an email here: [email protected].
FAQs
Are these drawer slides sold by the pair?
Yes, all our drawer slides are sold in pairs. This means you get a left and right hand runner, enough to build one drawer.
Can I run one locking and one non locking drawer slide on my setup?
You must either have both non locking or locking drawer slides. Splitting the pairs doesn't last long term. One locking leaver struggles to keep your drawer square and leads to failure of the locking mechanism in the future and voids your warranty. To counter this issue we have developed a locking leaver bar so one hand can operate both locking leavers at the same time. Please see link for leaver bar kits https://trailerpartsdirect.com.au/shop/drawer-slides/drawer-slide-accessories/227kg-locking-leaver-bar-latch/
How do I disconnect and rec-connect slides?
There is a video demonstration on this page that shows how to disconnect and re-connect your drawer slide. If you are still unsure we recommend you contact our customer service team for assistance before any damage is caused to the runner 1300210549.
Can I lay these flat for install?
No, drawer slides must be installed vertically. Whilst they will operate laying flat, they are not designed to work this way and there is no load rating for a flat mounted install. Installing your drawer slides flat will also void your warranty.
Is the advertised length extended or closed?
The sizes noted are the length of the runners from nose to tail in a closed position. This closed length the leaver tab at the front of all locking slides. These tabs add +30mm to the overall closed length noted.
What size bolts do I use for install?
Bolts used in drawer slide install must have a low profile head. Any bolt head too bulky will result in them colliding inside the slide during the opening and closing process. For 125kg and 227kg series drawer slides Dunn & Watson recommend 5mm bolts and nuts.
Why has my rear stopper fallen off or damaged?
Slamming your drawer can bend the rear fitting holding your stopper in place. Movement of this fitting from excessive force changes the stationary location of the stopper designed to run parallel with the slides. Once this stopper is no longer in its original position it collides with the slides cause pieces of it to beak off and evenly fall apart.
Why is my drawer rattling forwards and backwards?
Slamming your drawer causes your rear stopper to move (Refer FAQ above 'Why has my rear stopper fallen off or damaged?'). The factory location of the rear stopper keeps your runner in a tight position at its true 0% extension, when the rear stopper is moved due to slamming it creates play in the slide to rock between it's original 0% extension point and the gap to the moved stoppers new location. Bending the stopper forward to its original location will eliminate this play.
