316SS 10mm Stud Gas Strut Bracket – Internal Mount (Flat/Step out)

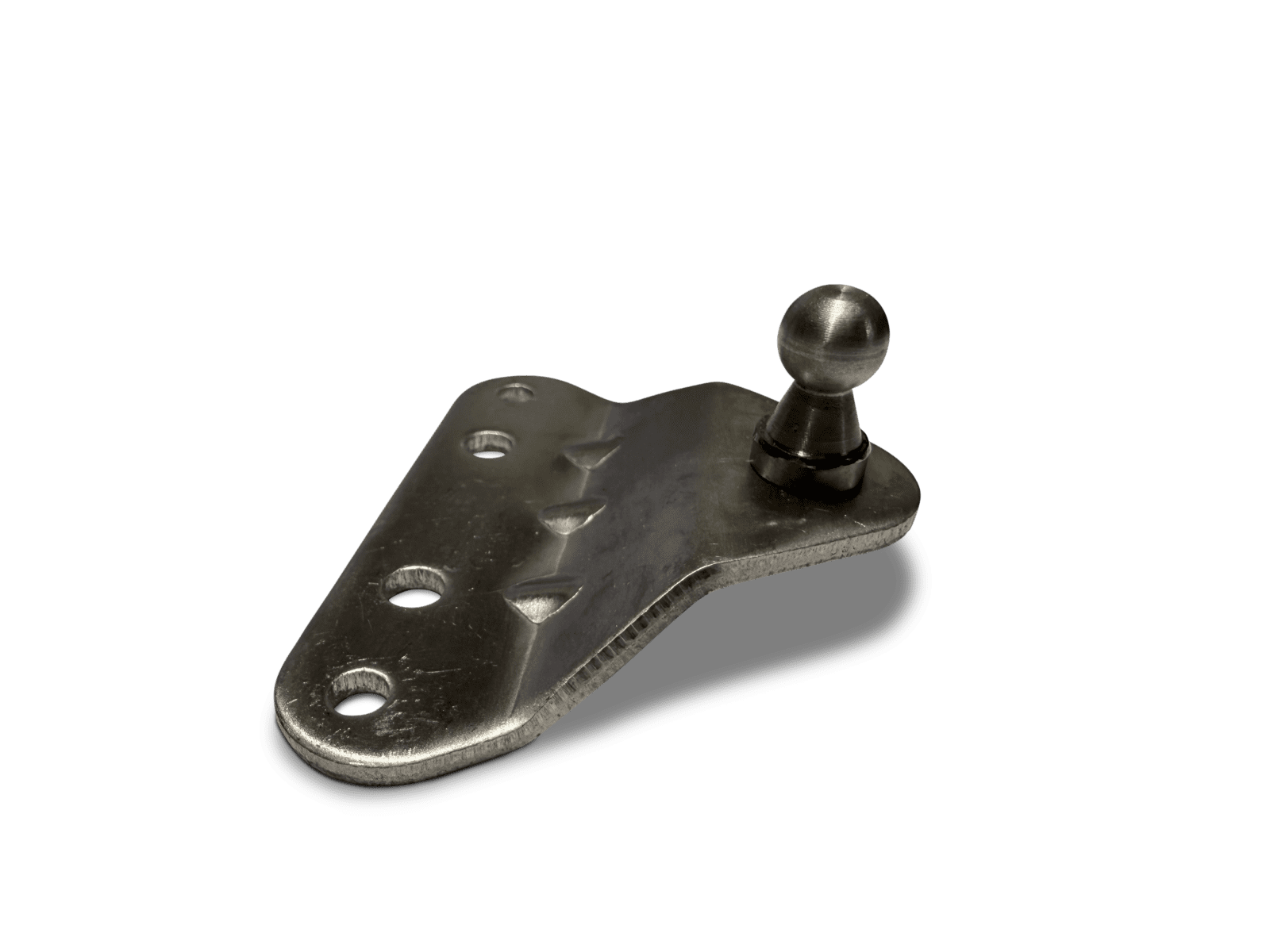

316 Stainless Steel 10mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 1

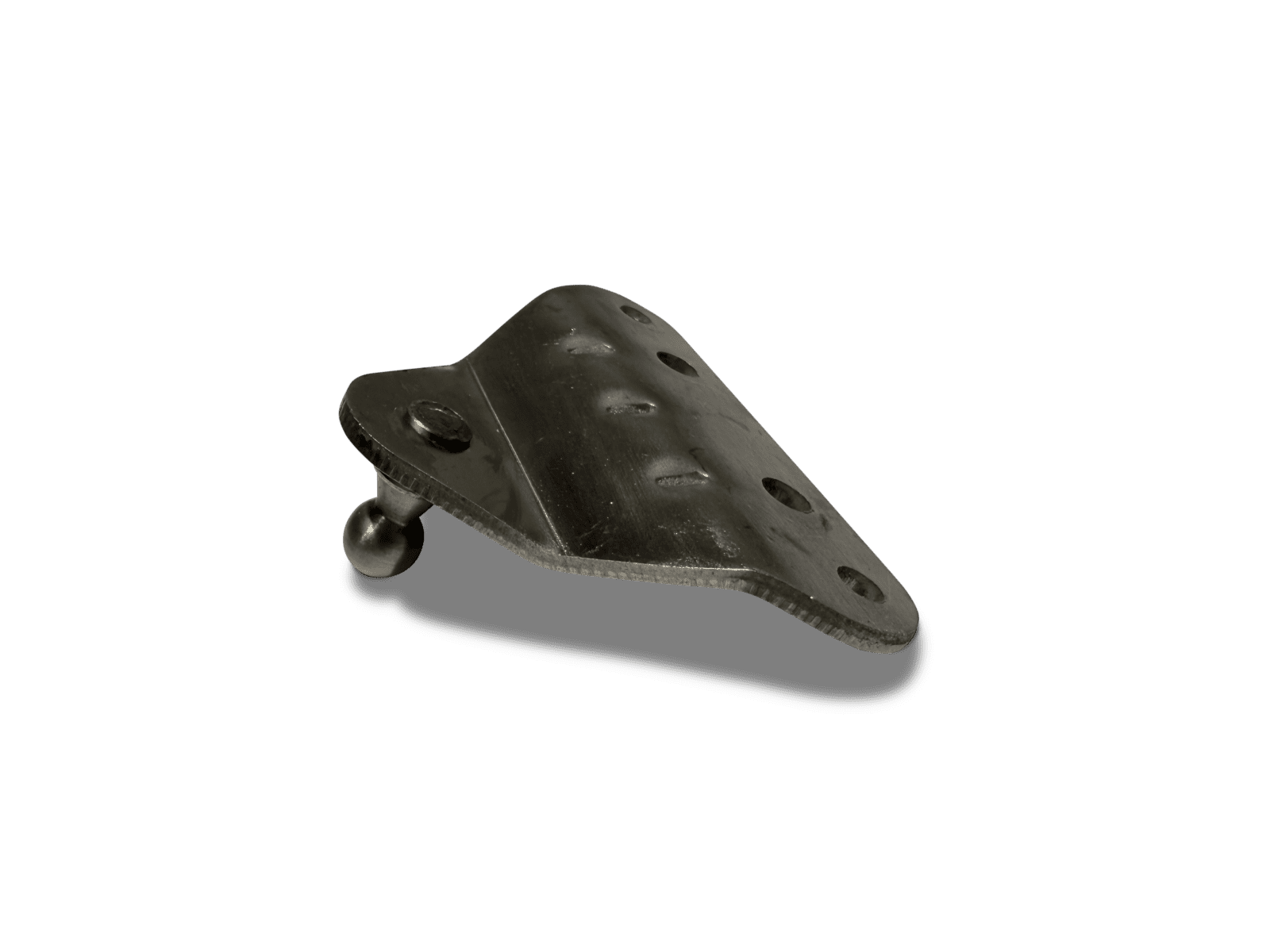

316 Stainless Steel 10mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 4

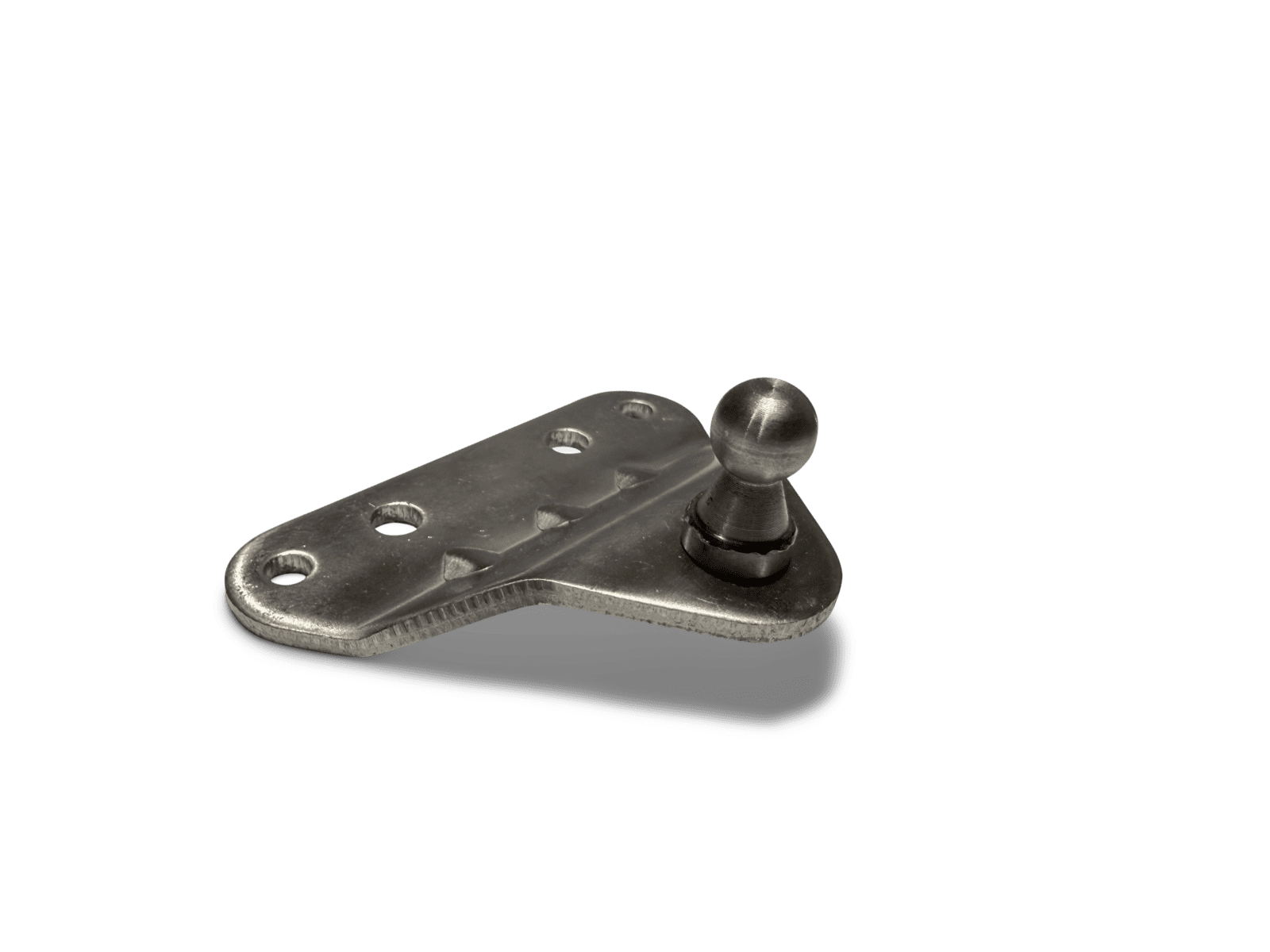

316 Stainless Steel 10mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 3

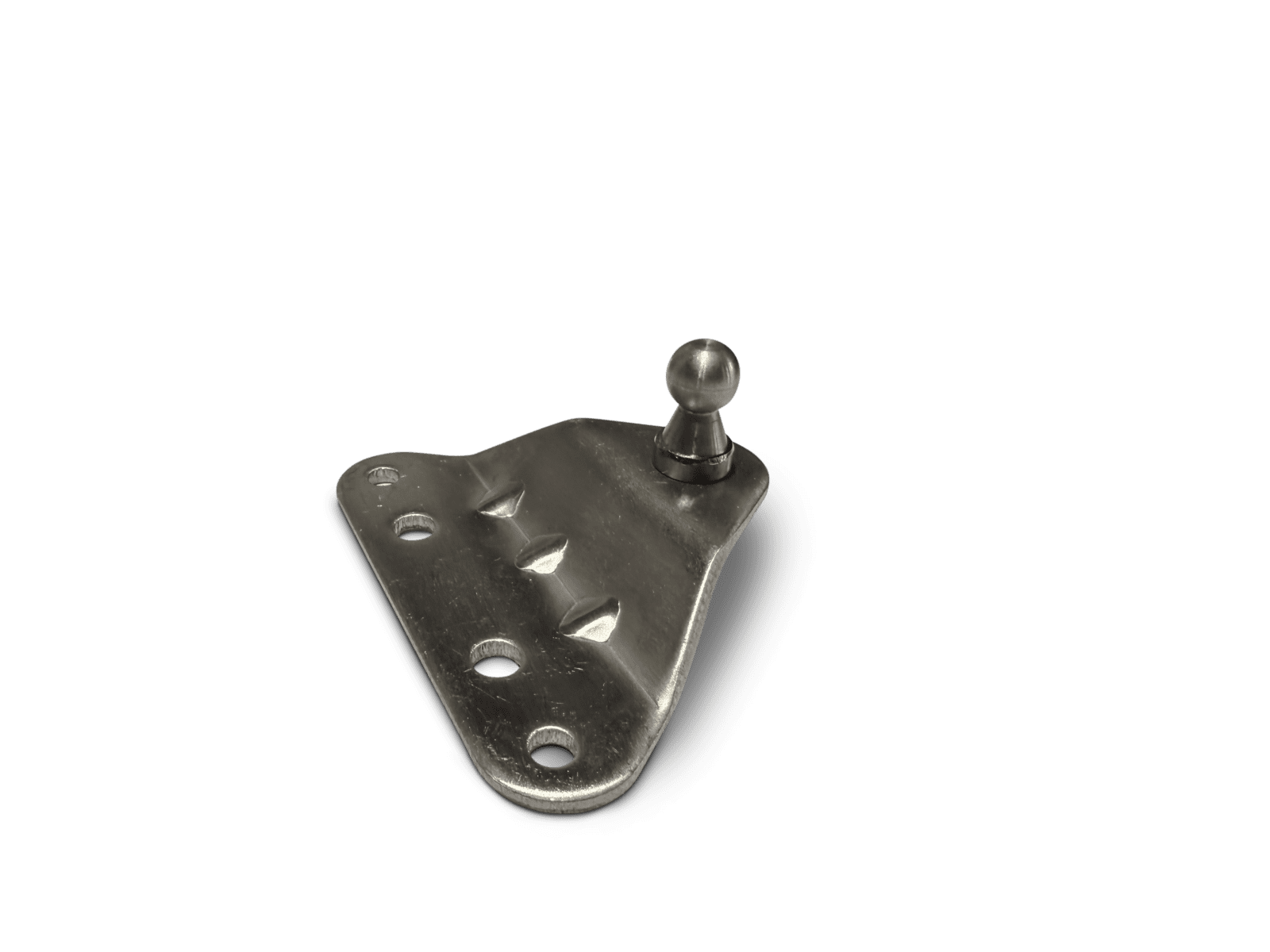

316 Stainless Steel 10mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 2

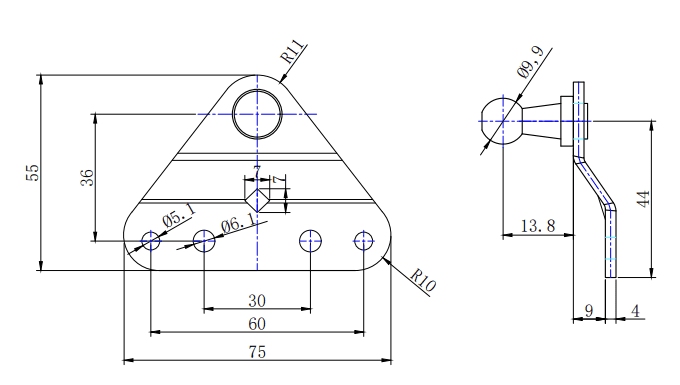

Mechanical part drawing with five holes, curved edges, a circular protrusion, and bent section dimensions.

$10.00

Buy Now, Pay Later options available

316 Stainless Steel 10mm Gas Strut Bracket – Internal Step-Out Mount for Caravans, 4WD Canopies & Camper Trailers

Features:

Manufactured from marine-grade 316 stainless steel for outstanding corrosion protection
Internal mounting bracket with step-out offset to position the strut correctly when clearance is tight
Supplied with a standard 10mm ball stud
Compatible with Dunn & Watson 316 Stainless Steel 6/15 and 8/18 gas struts up to 816mm
Ideal for concealed installations where alignment, spacing, and lid clearance are essential
Commonly used on camper trailers, 4WD canopies, off-road toolboxes, and caravans
Helps achieve precise mounting angles in compact or custom-fit layouts
***Please Note: Must NOT be used on gas struts greater than 700n

Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Description
Reviews (0)

The Dunn & Watson Step-Out Internal Mount Gas Strut Bracket is now offered in premium 316 stainless steel, designed to thrive in harsh coastal, marine, and off-road conditions. Its step-out profile lets you mount gas struts internally while providing the extra clearance needed for correct strut alignment and improved operating geometry.

Supplied with an integrated 10mm ball stud, it suits Dunn & Watson 6/15 and 8/18 316 Stainless Steel Gas Struts up to 595mm. Ideal for toolboxes, camper trailer lids, caravan hatches, and canopy compartments, this bracket delivers long-term strength and excellent corrosion resistance—perfect for exposed or high-moisture setups where dependable performance is essential.
