10mm Stud Gas Strut Bracket – Internal Mount (Flat/Step out)

13mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 1

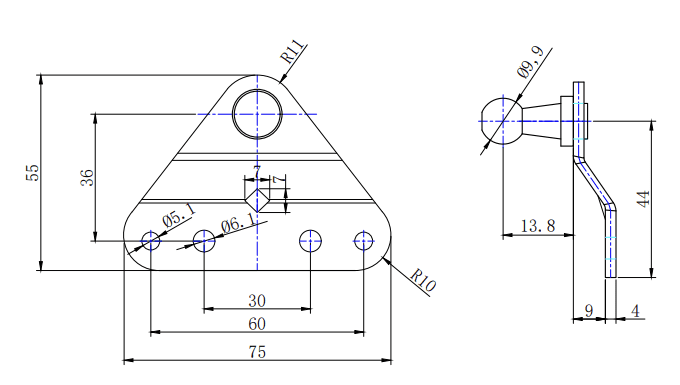

Mechanical part drawing with five holes, curved edges, a circular protrusion, and bent section dimensions.
10mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 4
10mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 2
No

$5.00

Buy Now, Pay Later options available

10mm Gas Strut Bracket – Step-Out Internal Mount for Caravans, Campers & 4×4 Applications

Features:

  • Durable zinc-coated steel bracket with a step-out design for internal mounting

  • Supplied with a standard 10mm ball stud

  • Compatible with Dunn & Watson 6/15 and 8/18 gas struts

  • Suits gas strut lengths 195mm, 316mm, 430mm, 500mm, and 595mm

  • Ideal for concealed installations where an offset is needed for correct strut positioning

  • Commonly used in 4WD canopies, camper trailers, caravans, and off-road toolboxes

  • Helps achieve accurate mounting angles for smooth, reliable strut operation

A practical solution for custom builds where clearance, alignment, and tidy internal fitment are important.

Dunn & Watson Wall Mounted Bottle Opener - 1

x

Recommended products

Gas Strut Bracket Hat Section 1

Brackets for 10X22 Gas Struts (700mm

Gas Strut Bracket (Hat Section)

$5.00
Add to cart
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

AfterPay
Bank Transfer
Braintree
MasterCard
Visa

The Dunn & Watson Step-Out Internal Mount Gas Strut Bracket is designed to solve offset mounting challenges where clearance and alignment are essential. Ideal for camper trailers, 4WD canopies, and caravan storage compartments, it allows the strut to be mounted internally while stepping it outward for improved geometry and easier access.

Finished with a corrosion-resistant zinc coating and built for durability, this bracket is made to withstand harsh outdoor environments and regular off-road use—making it a reliable choice for both custom builds and heavy-duty touring setups.
