Canopy Hinge – Stainless Steel
$120.00
-

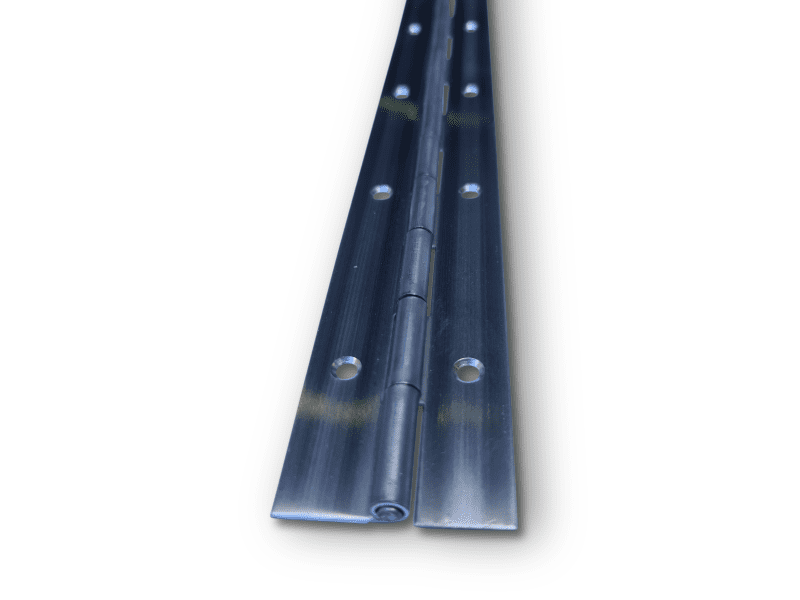

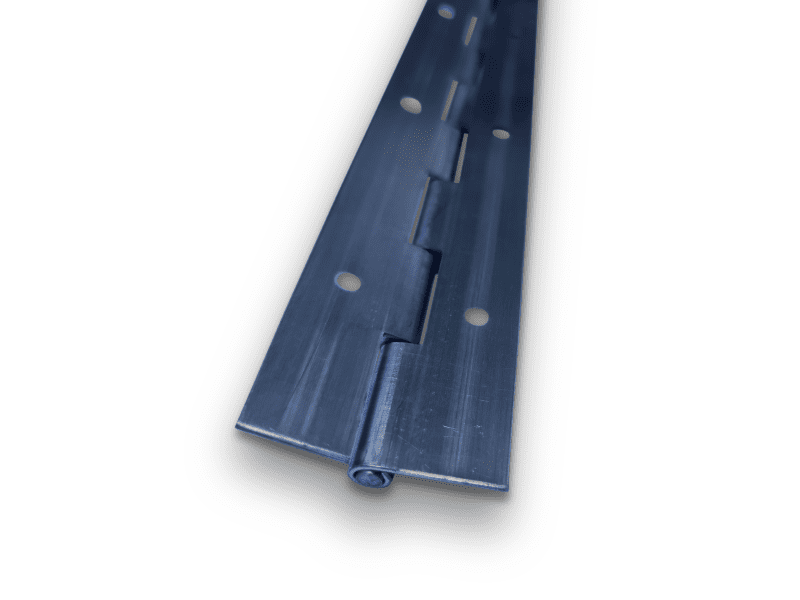

Dunn and Watson Canopy Hinge: continuous piano hinge with pre-drilled holes for easy installation
-
Made from durable 304 grade stainless steel (hinge and pin) for excellent corrosion resistance
-
Ideal for canopy doors, trailers, toolboxes, caravans, and camper trailers
-
Smooth operation with matching stainless steel pin providing full rust protection
-
Continuous full-length design for even load distribution and enhanced stability
-
Specs: 50mm open width | 2400mm length | 1.5mm material thickness | 5mm pin diameter
-
Easy to install with screws or rivets
-
Clean, brushed stainless steel finish for a professional appearance
-
Suitable for outdoor, marine, and high-moisture environments
46 in stock (Need more? Order any quantity and we'll promptly fulfil the balance)
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The Dunn and Watson Canopy Hinge is a continuous piano hinge designed for durability and ease of installation. Made from high-quality 304 grade stainless steel, both the hinge and pin deliver excellent corrosion resistance, making it an ideal choice for outdoor, marine, or high-moisture environments. This hinge is especially well-suited for doors on canopies and trailer builds, offering strength and reliable long-term performance.
Featuring a continuous, full-length design with pre-drilled holes, the hinge allows for quick and secure mounting using screws or rivets. The matching stainless steel pin ensures smooth, consistent operation while maintaining full rust protection. The full-length construction provides even load distribution, enhancing structural integrity and stability across doors, panels, or lids.
Key specifications include:
-
50mm open width
-
2400mm length
-
1.5mm material thickness
-
5mm pin diameter
Available in open widths ranging from 32mm to 120mm and lengths from 1800mm to 2400mm, the hinge can be easily trimmed to size with standard tools. Its clean, brushed stainless steel finish offers a professional look suitable for industrial, commercial, and DIY applications.
Popular for use in fabricating toolboxes, canopies, caravans, and camper trailers, the Dunn and Watson Canopy Hinge combines strength, corrosion resistance, and ease of installation to meet the demands of heavy-duty, frequently used installations.
