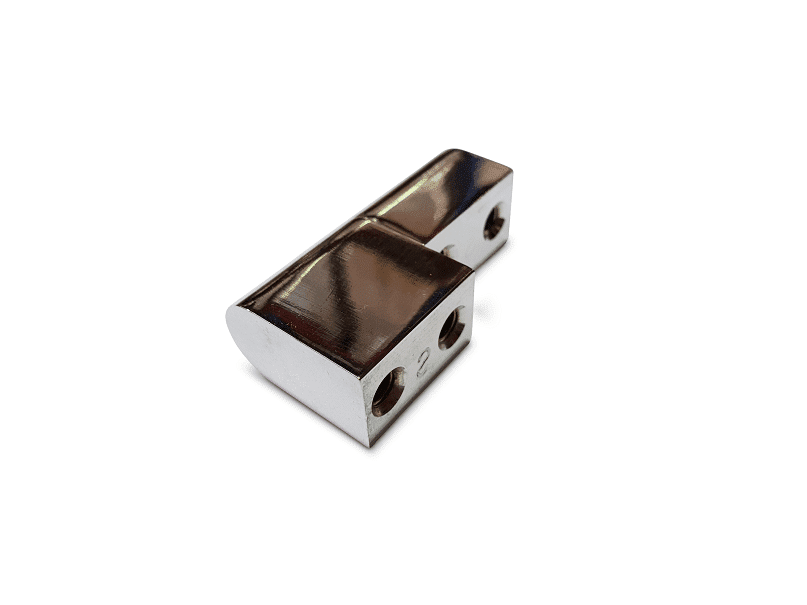

Stepped Pintle Hinge – 40mm

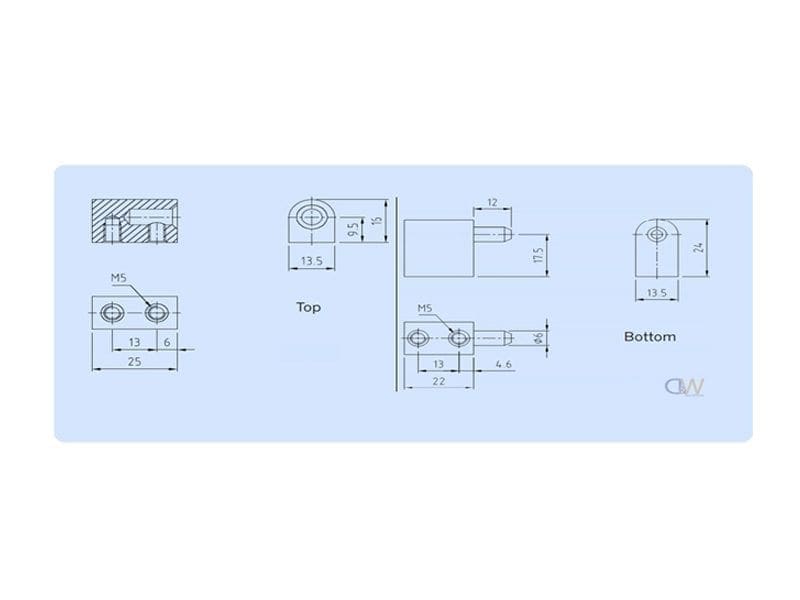

Tech Drawings and Details

hrome-Plated Pintle Hinges by Dunn & Watson – Functional Hinges with Professional Finish

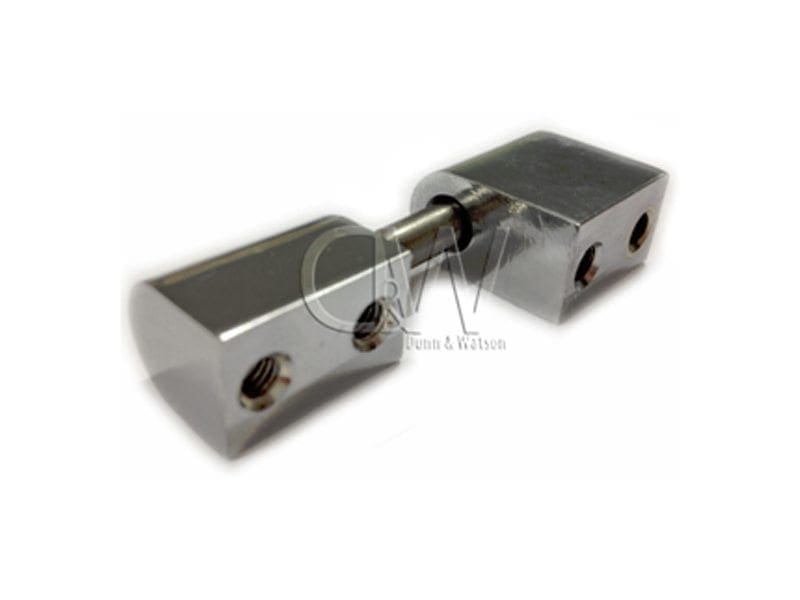

Dunn & Watson’s chrome-plated pintle hinges are available in 40 mm stepped, 50 mm, and 82 mm sizes, designed for mounting heavy-duty lids and doors in a range of applications. The combination of a robust chrome-plated brass housing and a stainless steel pivot pin provides both strength and stylish presentation.

Perfectly suited for switchboards, electrical cabinets, utility boxes, toolboxes, and marine builds, these pintle hinges deliver corrosion-resistant durability and a polished appearance. The chrome plating serves as both a protective layer and a sleek aesthetic choice, while the stainless steel pin ensures dependable hinge performance over time.

A preferred option for camper trailers, caravans, boats, and fabrication projects, these hinges integrate well with Dunn & Watson’s wide accessory range—gas struts, seals, fasteners, locks, and more—offering a complete solution for your custom builds.

Great for electrical boxes, utility boxes, etc.  Quite often camper trailer, caravan and boat fabrication work involving our range of hinging generally means you might also have a need for our extensive range gas struts, locks & handles, drawer slides, foam & rubber seals, fasteners and much more.
