Spring Loaded Stainless Over Centre Fastener

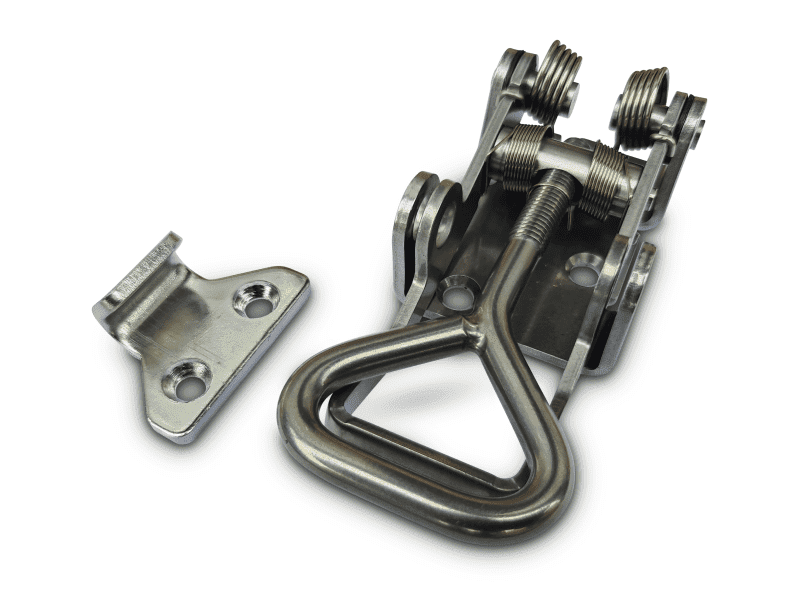

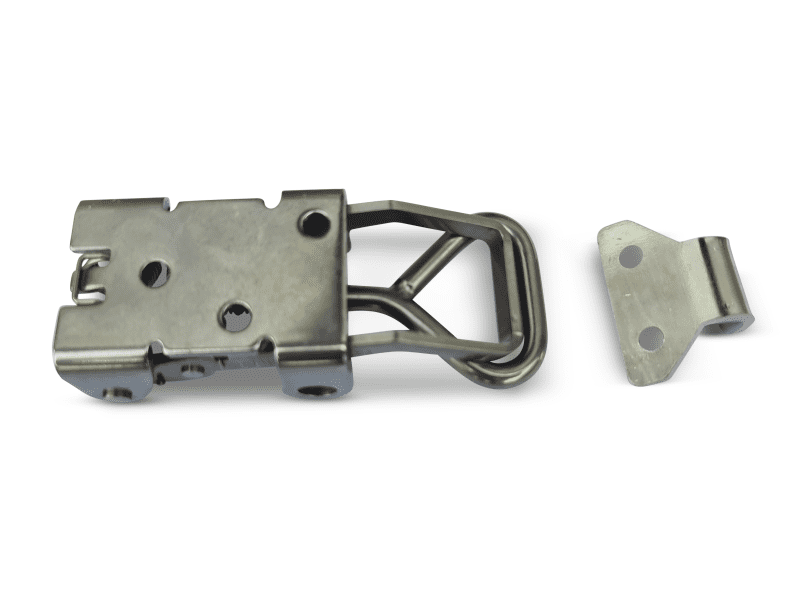

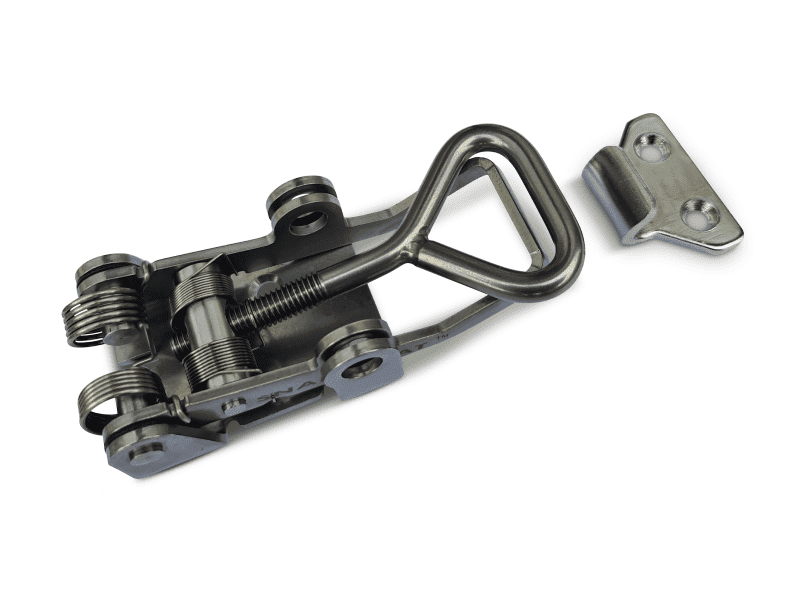

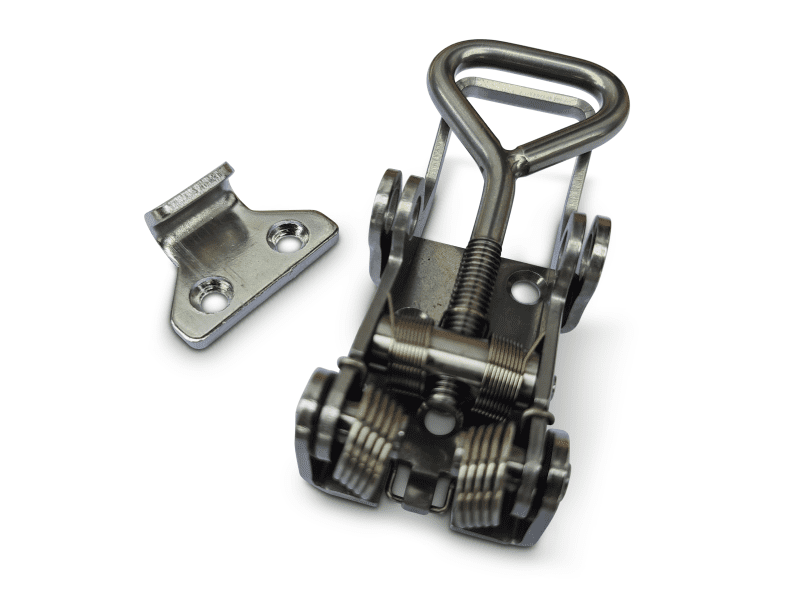

Large Spring-Loaded Over Centre Latch – 304 Stainless Steel with Fail-Safe Security

The Dunn & Watson large spring-loaded over centre fastener takes the reliability of a traditional toggle latch and enhances it with two key upgrades: built-in safety and secure stowage. Featuring a dual spring mechanism, this latch not only prevents accidental decoupling under load with its Fail-Safe feature but also snaps flat when disengaged to prevent damage or injury with its Snap-Flat action.

Made from corrosion-resistant 304 stainless steel and offering an adjustable range of 36.5mm to 61.5mm, this heavy-duty latch is ideal for trailers, utes, campers, and industrial applications where strength and safety are paramount.

The spring loaded over centre fastener is a secure way to fasten doors and lids. The tension on the spring keeps the arm and handle flat and prevents rattling, greatly reducing the chance that the latch opens in transit. This fastener is made from 304 stainless steel and has an adjustable arm.

• Constructed from 304 stainless steel for excellent corrosion resistance

• Dual spring-loaded mechanism with integrated Fail-Safe and Snap-Flat functions

• Fail-Safe design prevents accidental release even when not fully latched

• Snap-Flat action keeps latch secure and flush when not in use

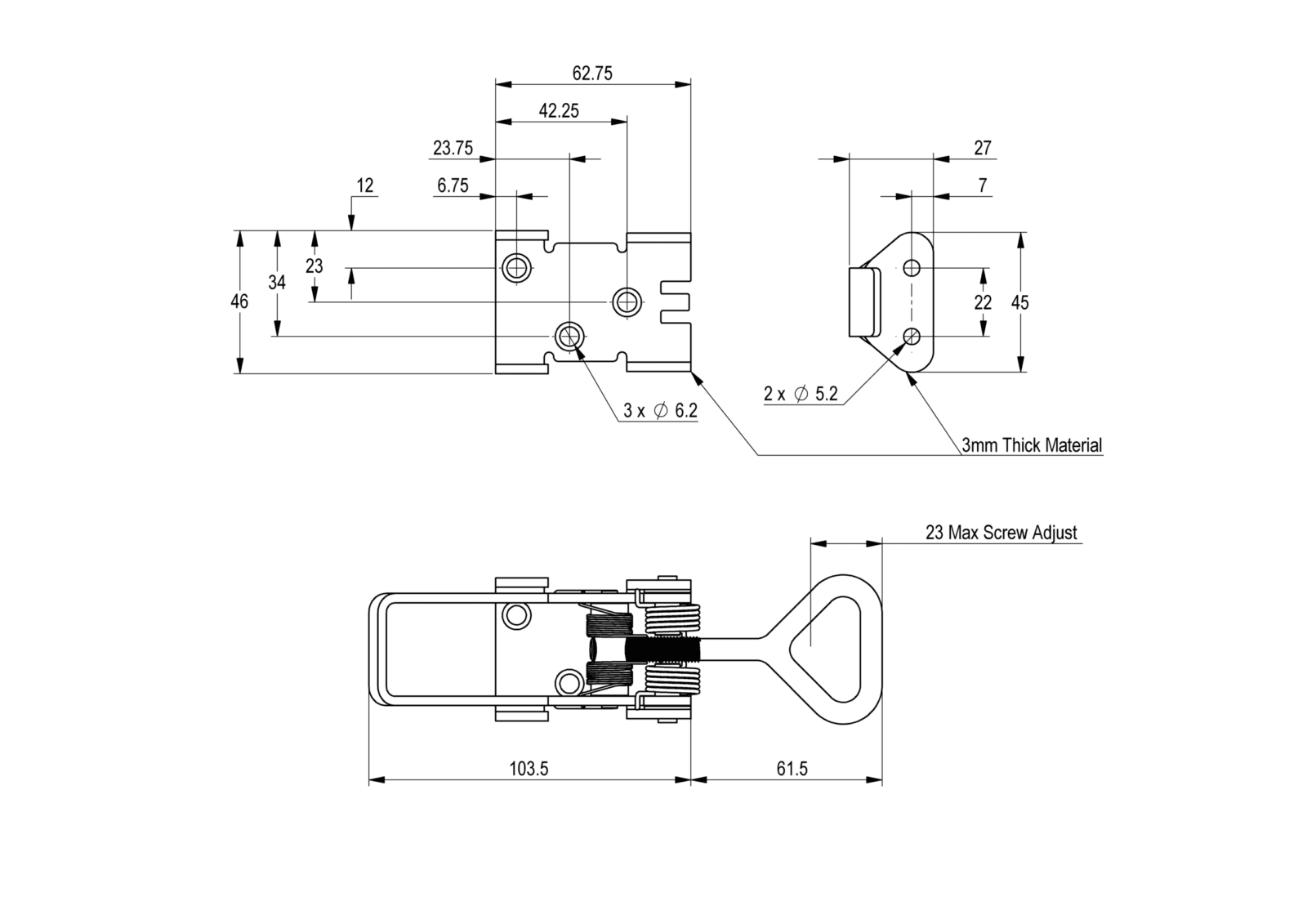

• Adjustable from 36.5mm to 61.5mm from latch face to T-bar tip

• Lockable design adds additional layer of security

• Breaking strain rated over 1 tonne – suited for high-load applications

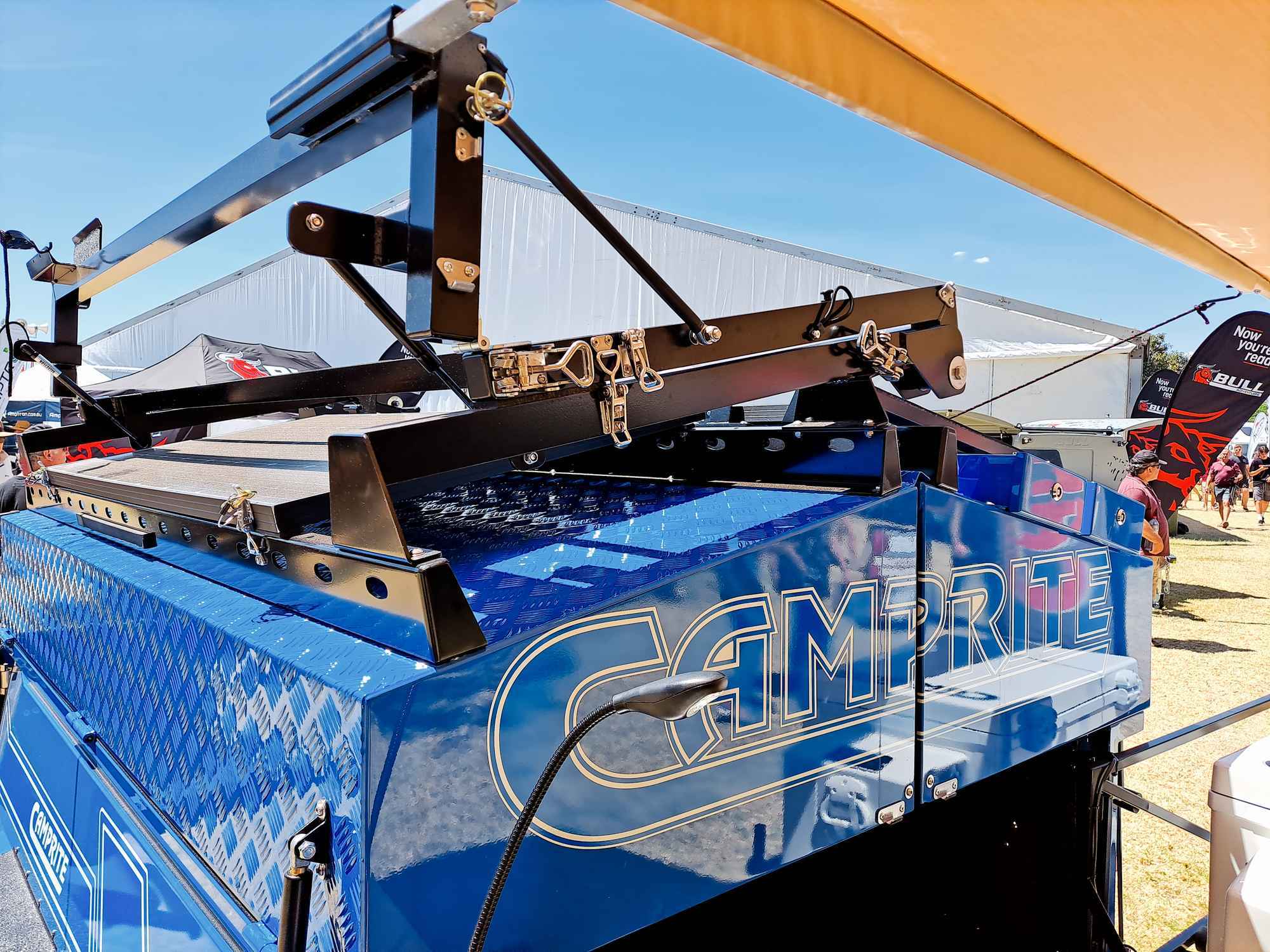

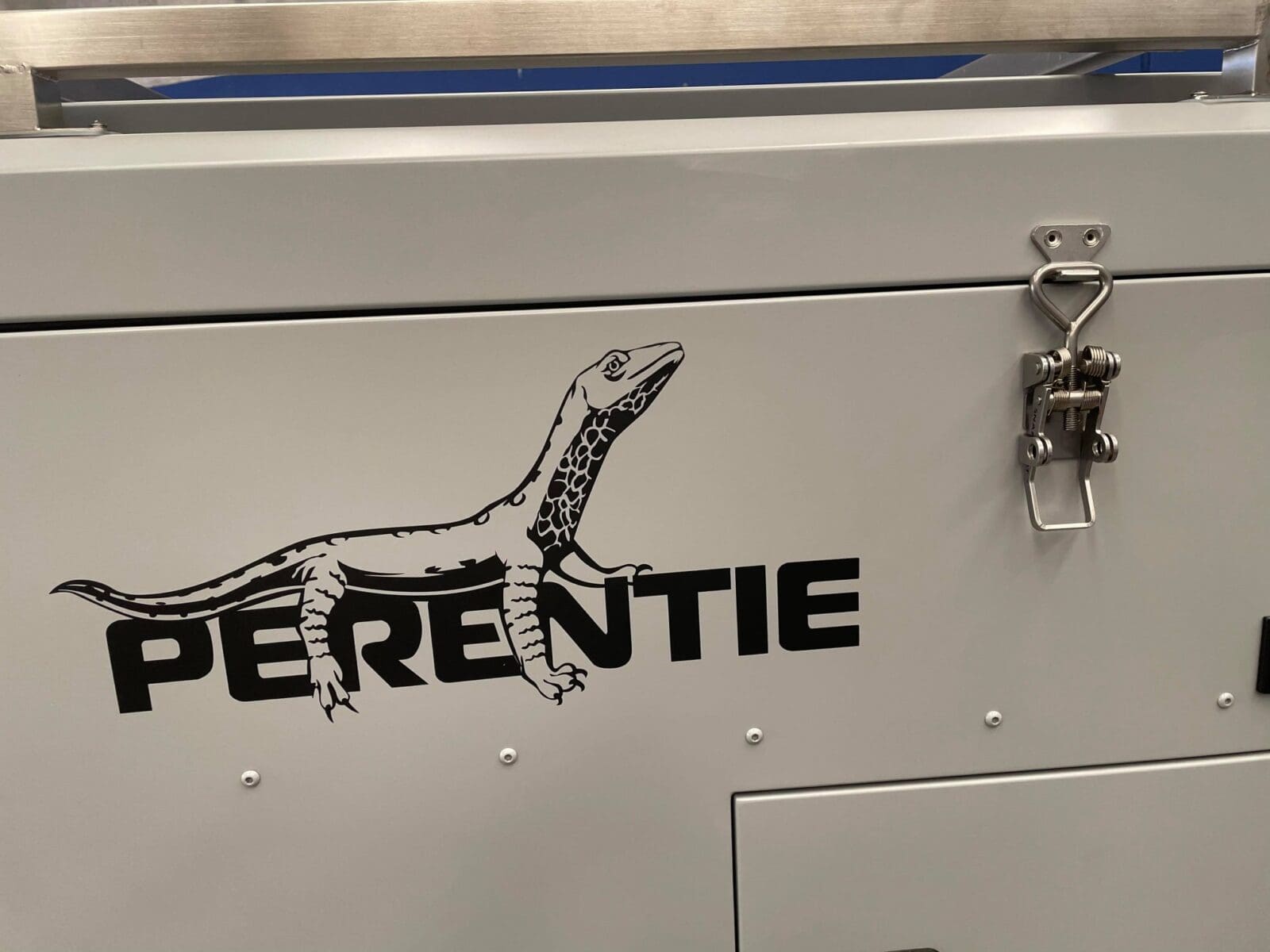

• Ideal for mobile setups, trailers, off-road builds, and utility compartments
