13mm Stud Gas Strut Bracket – Internal Mount (Flat/Step out)

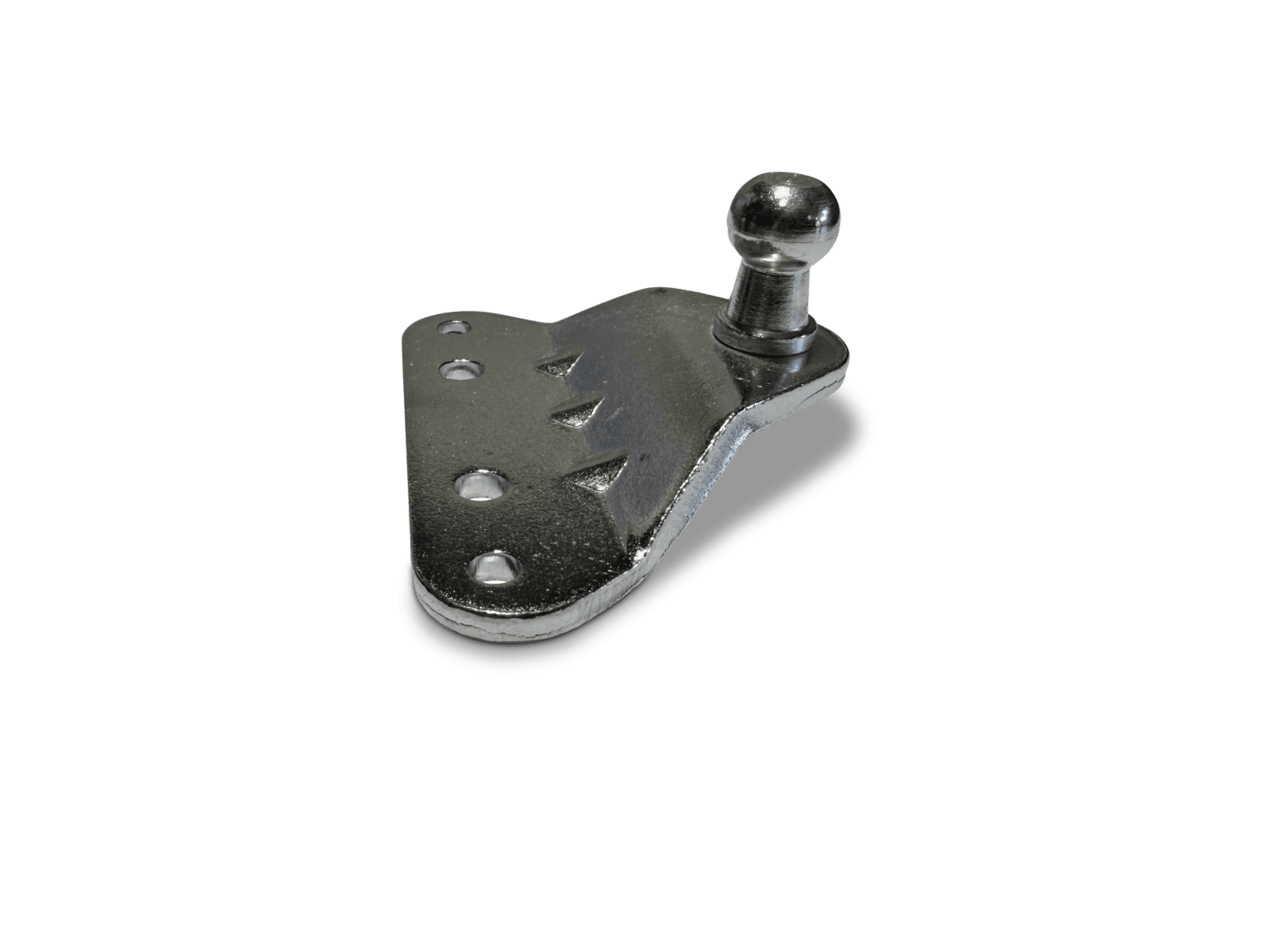

13mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 2

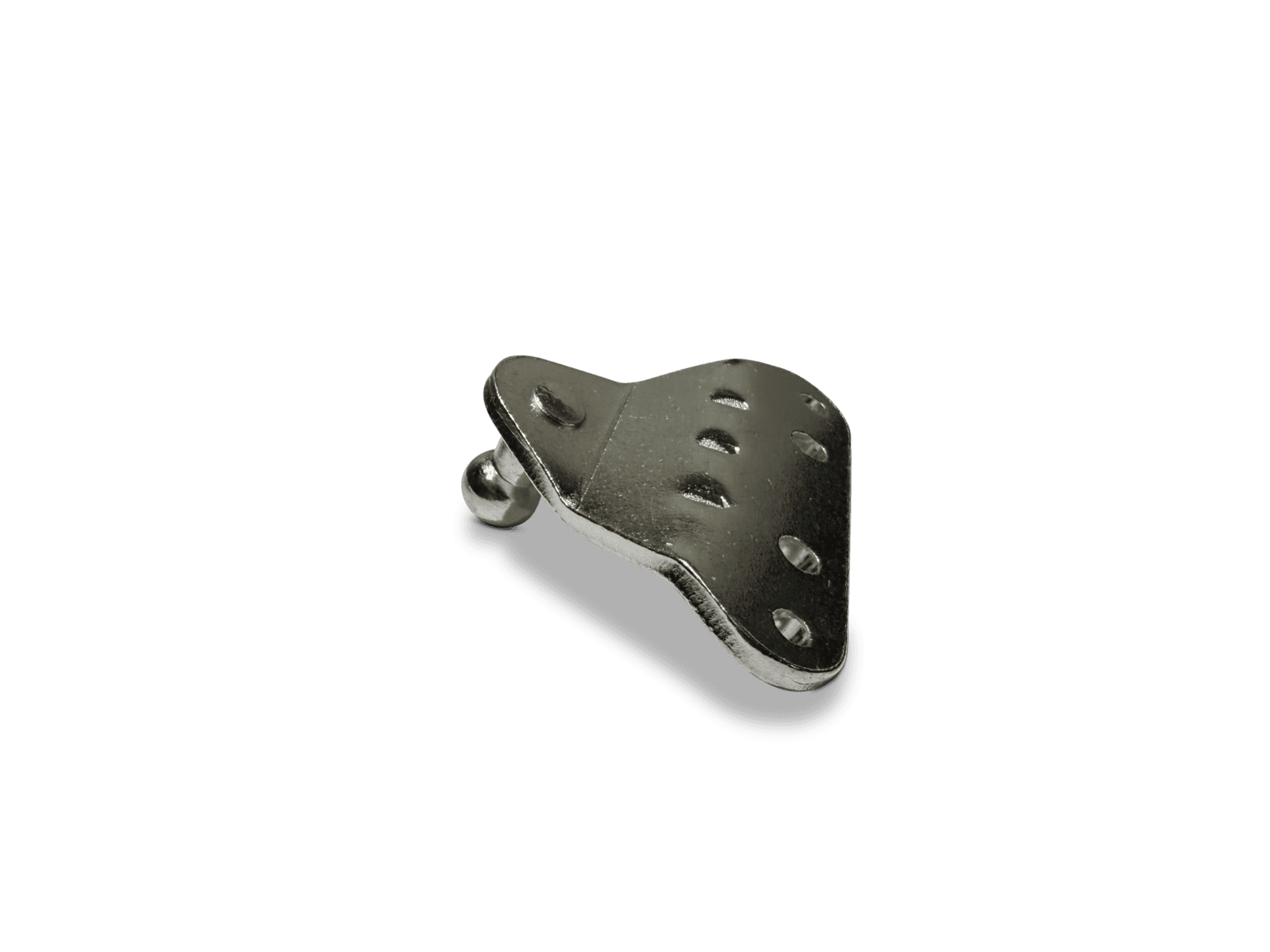

13mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 4

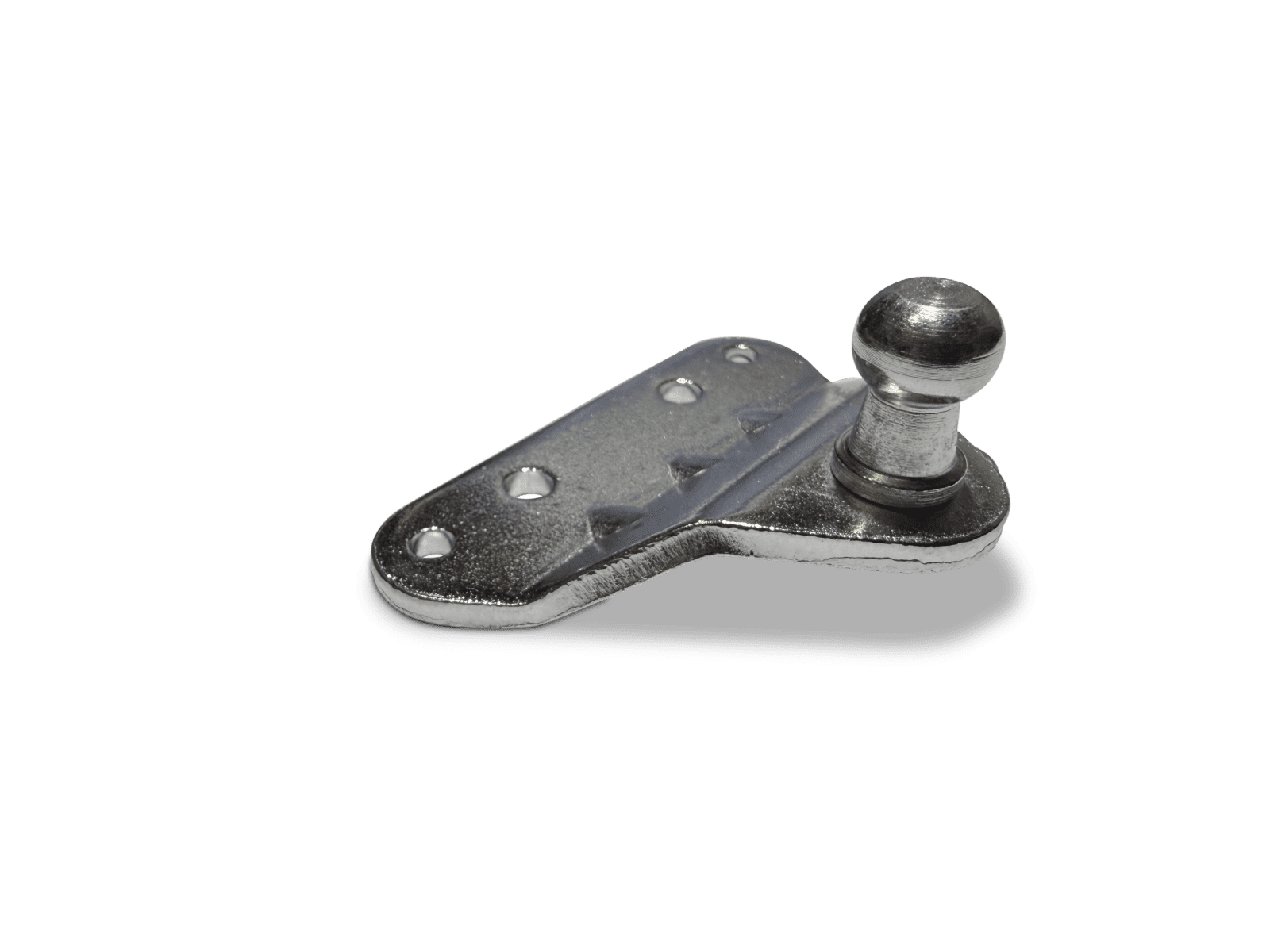

13mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 3

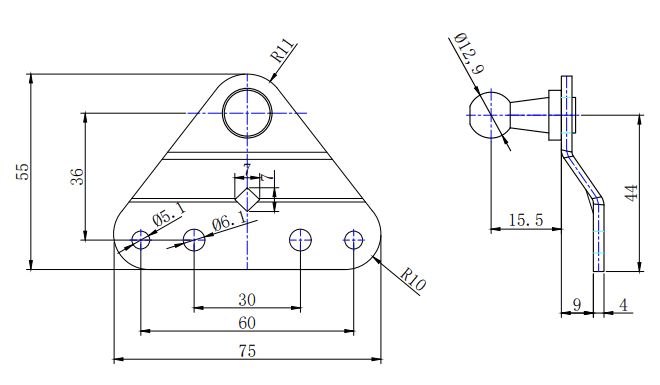

Technical drawing of a triangular mechanical part with holes and cylindrical extension, dimensions in millimeters.
No

$5.00

Buy Now, Pay Later options available

13mm Gas Strut Bracket – Step-Out Internal Mount for Caravans, Campers & 4×4 Applications

Features:

  • Durable zinc-coated steel bracket with a step-out design for internal mounting

  • Supplied with a standard 13mm ball stud

  • Designed to suit Dunn & Watson 10/22 gas struts

  • Suitable for 700mm and 816mm gas strut lengths

  • Ideal for concealed installations where an offset is required for correct strut positioning

  • Commonly fitted to 4WD canopies, camper trailers, caravans, and off-road toolboxes

  • Assists in achieving accurate strut geometry and smooth operation

  • IMPORTANT: Compatible with 100N–700N (MAX) gas struts only

This bracket is a practical solution for larger strut setups where space, alignment, and reliability are critical.

Dunn & Watson Wall Mounted Bottle Opener - 1

x

Recommended products

316 Stainless Steel 10mm Stud Gas Strut Bracket ΓÇô Internal Mount Flat Step Out 1

316 Stainless Brackets for 6X15 & 8X18 Gas Struts

316SS 10mm Stud Gas Strut Bracket – Internal Mount (Flat/Step out)

$10.00
Add to cart
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

AfterPay
Bank Transfer
Braintree
MasterCard
Visa

The Dunn & Watson 13mm Step-Out Internal Mount Gas Strut Bracket is purpose-built for offset mounting with longer 700mm and 816mm 10/22 gas struts. Its step-out design allows the strut to sit further out while remaining internally mounted—making it ideal for applications where clearance, alignment, and correct operating geometry are critical.

Constructed for tough off-road use, this bracket features a durable zinc finish for added corrosion resistance and a heavy-duty build suited to 4WD canopies, camper trailers, and caravan installations. Supplied with a 13mm ball stud, it’s designed to work seamlessly with the Dunn & Watson 10/22 gas strut range, providing a strong and dependable mounting solution.

A great choice for custom builds where internal space is limited and precise strut positioning is required—without sacrificing strength or long-term performance.

Reviews

There are no reviews yet.

Be the first to review “13mm Stud Gas Strut Bracket – Internal Mount (Flat/Step out)”
